Parts location: Notes

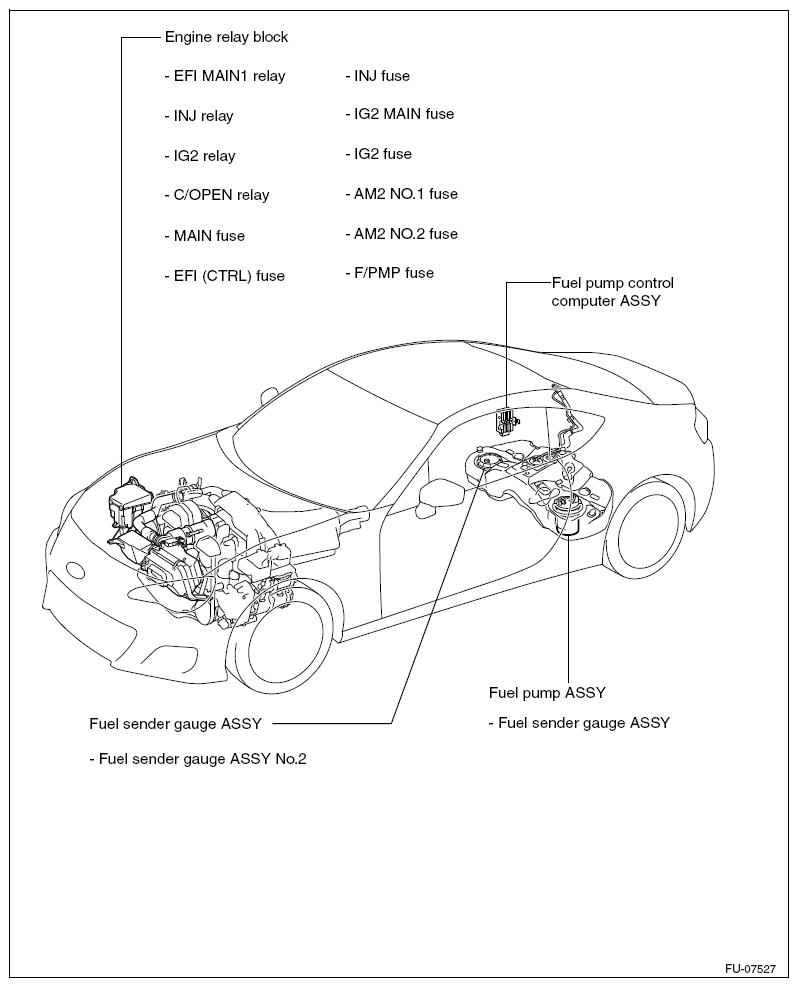

Fig 1: Identifying Fuel System Related Components (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

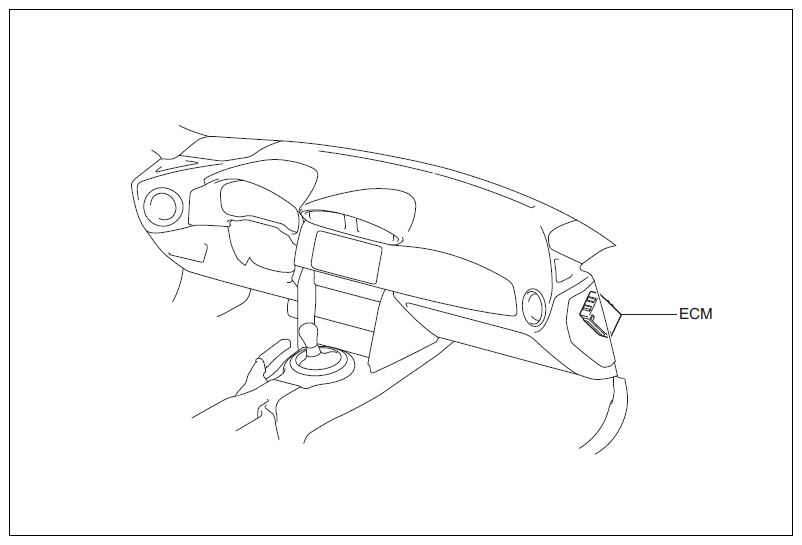

Fig 2: Identifying Fuel System Related Components (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

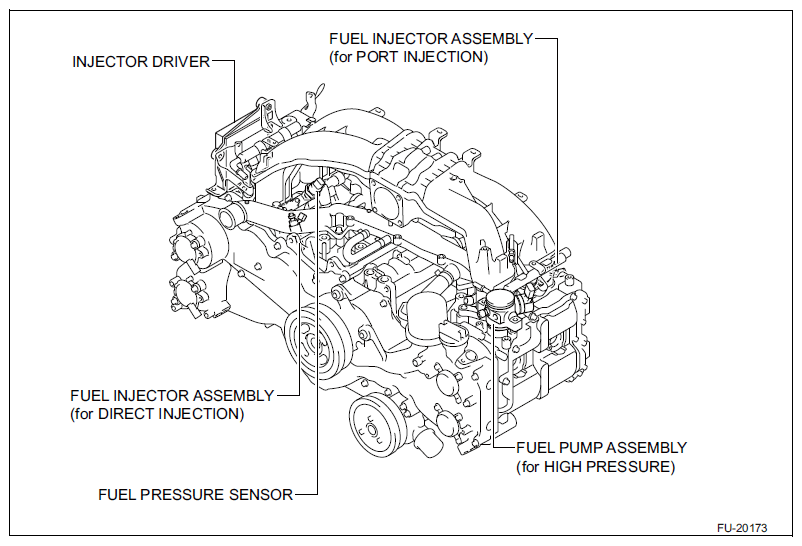

Fig 3: Identifying Fuel System Related Components (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
