Parts location

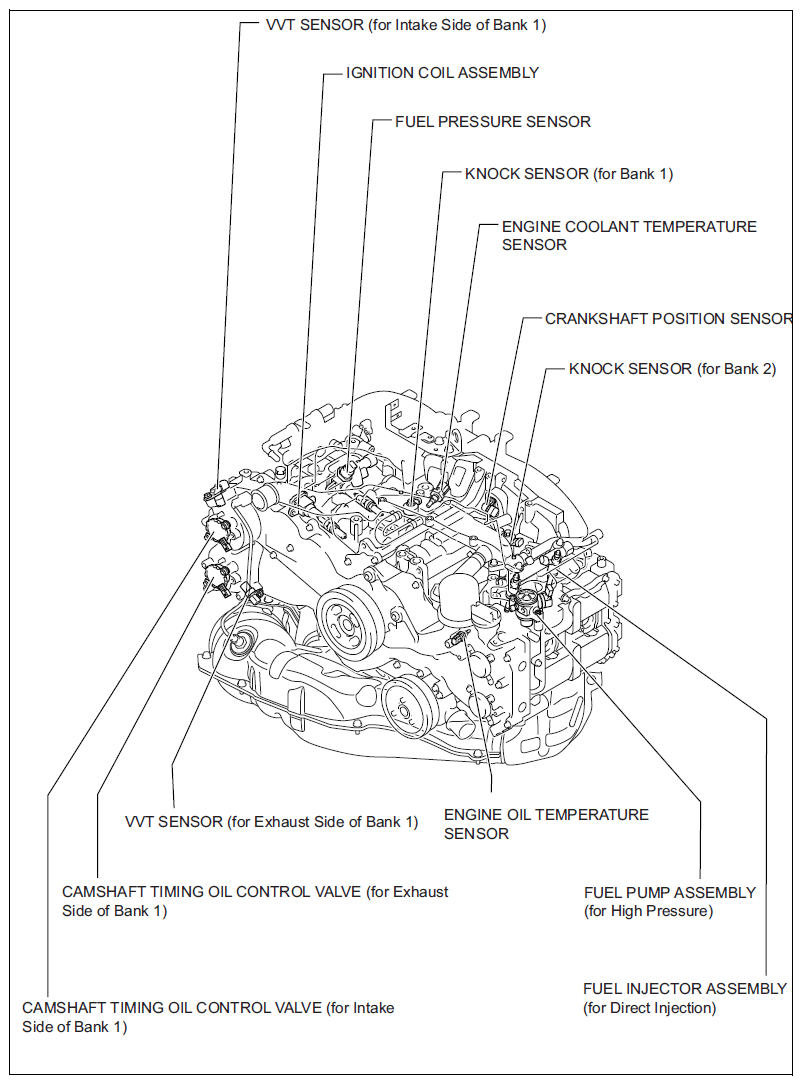

Fig 1: EFI System (FA20) Components Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: EFI System (FA20) Components Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: EFI System (FA20) Components Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: EFI System (FA20) Components Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
