Engine control computer (FA20): Removal
- Disconnection of the battery ground terminal (Refer to
Working precautions and notes
)
- Removal of the instrument side panel RH (Refer to
Removal
)
- Removal of glove compartment door ASSY (Refer to
Removal
)
- Removal of control module relay ASSY (without smart entry) (Refer to
Key lock unit
)
- Removal of engine control computer
- Disconnect 4 connectors for engine control computer.
Courtesy of SUBARU OF AMERICA, INC.

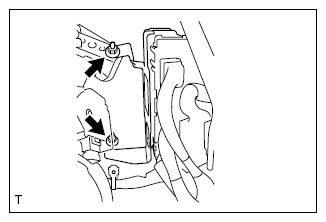

- Remove 2 nuts, and remove the engine control computer.
Courtesy of SUBARU OF AMERICA, INC.
- Removal of engine control computer bracket

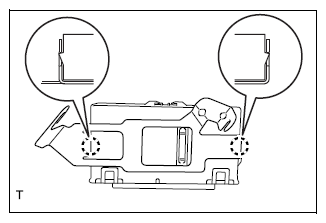

- Release 2 claws, and remove the engine control computer bracket.
Courtesy of SUBARU OF AMERICA, INC.
