Unit inspection

Engine oil temperature sensor check

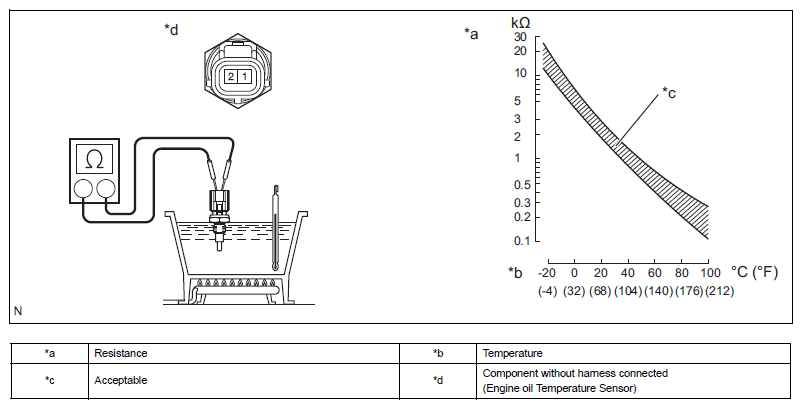

Fig 1: Checking Engine Oil Temperature Sensor Terminals Resistance

Courtesy of SUBARU OF AMERICA, INC.

Resistance check

Measure the resistance between the terminals.

RESISTANCE SPECIFICATIONS

Inspection terminals	Inspection conditions	Standard value
1 - 2	Approx. 20°C {68°F}	2.25 to 2.65kΩ
1 - 2	Approx. 80°C {176°F}	0.305 to 0.331kΩ

CAUTION: When the inspection is performed with the sensor immersed in water, be careful not to allow the ingress of water into the terminal part. After inspection is completed, wipe off the water drops from the sensor.
