Knock control sensor (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to Working precautions and notes )
  2. Removal of intake manifold (Refer to REMOVAL )
  3. Removal of knock control sensor
    1. Disconnect 2 connectors for knock control sensor.
    2. Remove 2 bolts, and remove the 2 knock control sensors.

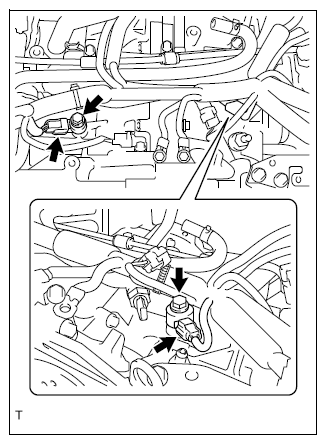

    Fig 1: Locating Knock Control Sensor Bolt And Connector
    G11258407Courtesy of SUBARU OF AMERICA, INC.
