Unit inspection

  1. Inspection of knock control sensor
    1. Measure the resistance between the terminals.
    RESISTANCE SPECIFICATIONS

    Inspection terminals Inspection conditions Standard value
    1 - 2 20°C {68°F} 532 to 588kΩ

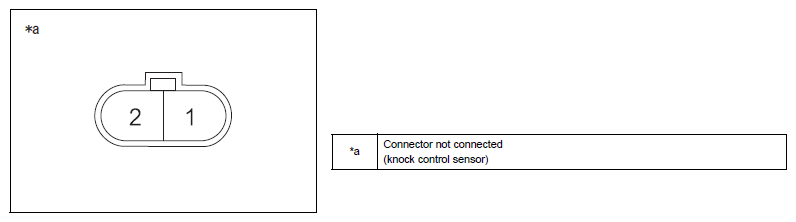

    Fig 1: Identifying Knock Control Sensor Connector Terminals
    G11258409Courtesy of SUBARU OF AMERICA, INC.
