Unit inspection

  1. Inspection of oxygen sensor
    1. Measure the resistance between the terminals.
    RESISTANCE SPECIFICATIONS

    Inspection terminals Inspection conditions Standard value
    1 - 2 20°C {68°F} 5.0 to 6.4Ω
    1 - 4 Always 10 k Ωor more

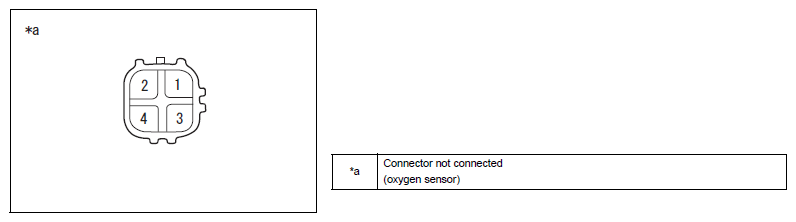

    Fig 1: Identifying Oxygen Sensor Connector Terminals
    G11258426Courtesy of SUBARU OF AMERICA, INC.
