CROSSTREK Model
- Disconnect the ground cable from battery. Ref. to BATTERY .
- Remove the trim panel - rear gate. Ref. to REMOVAL , Rear Gate Trim.
- Remove the arm assembly - rear wiper. Ref. to REMOVAL , Rear Wiper Arm.
- Remove the motor assembly - rear wiper. Ref. to REMOVAL , Rear Wiper Motor.
- Remove the garnish assembly - rear gate. Ref. to REMOVAL , Rear Gate Garnish.
- Remove the rearview camera assembly.
CAUTION:
Do not drop or apply any impact to the rearview camera because it is a precision equipment.

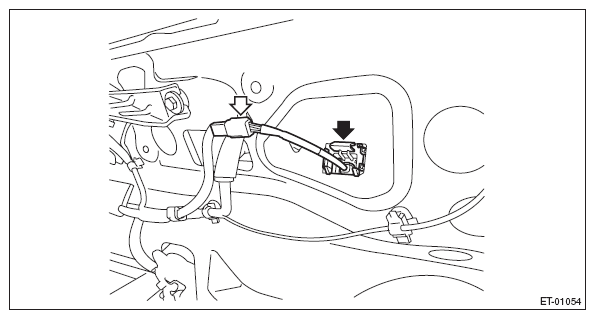

- Disconnect the rearview camera connector.
- Disconnect the claws and then remove the rearview camera assembly.
