Electronic Throttle Control Relay: Removal

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Release the lock and remove the fuse holder from the relay & fuse box.

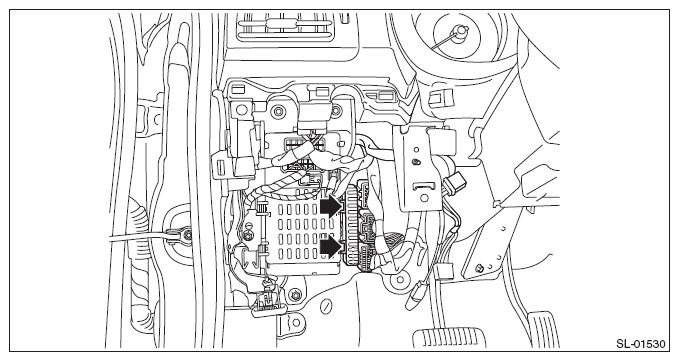

Fig 2: Locating Fuse Holder From Relay & Fuse Box
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the relay & fuse box.
Remove the bolts (A) and nuts (B), and remove the relay & fuse box.

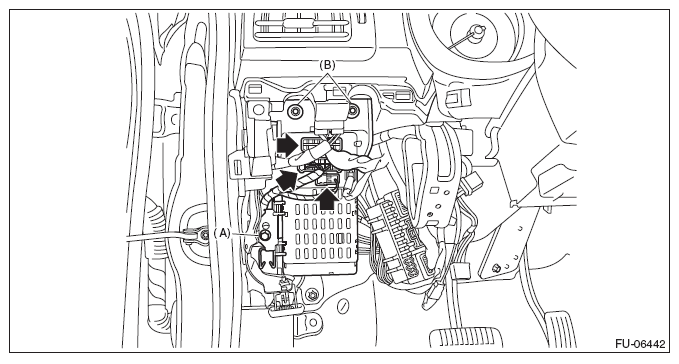

Fig 3: Locating Connectors From Relay & Fuse Box
Courtesy of SUBARU OF AMERICA, INC.
Remove the electronic throttle control relay from the relay block on the back side of the fuse block.

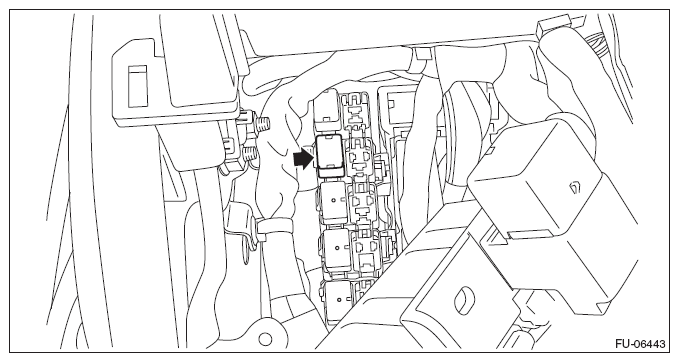

Fig 4: Locating Electronic Throttle Control Relay From Relay Block On Back Side Of Fuse Block

Courtesy of SUBARU OF AMERICA, INC.
