Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

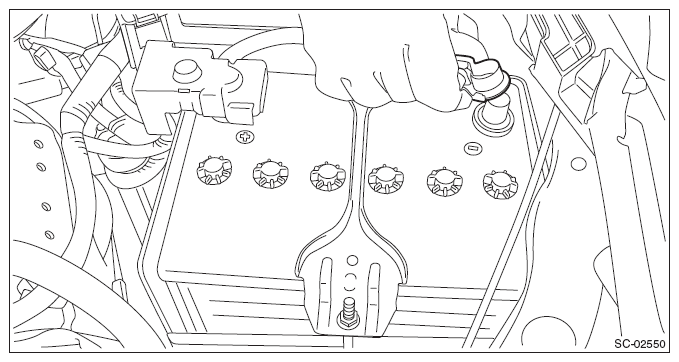

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. Ref. to REMOVAL , Glove Box.
Disconnect the connector from ECM.

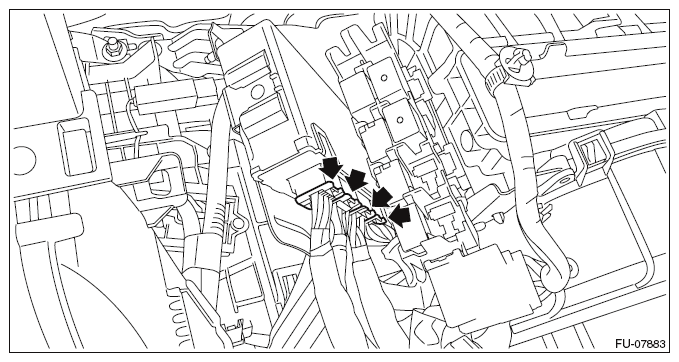

Fig 2: Locating ECM Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts, and remove the ECM.

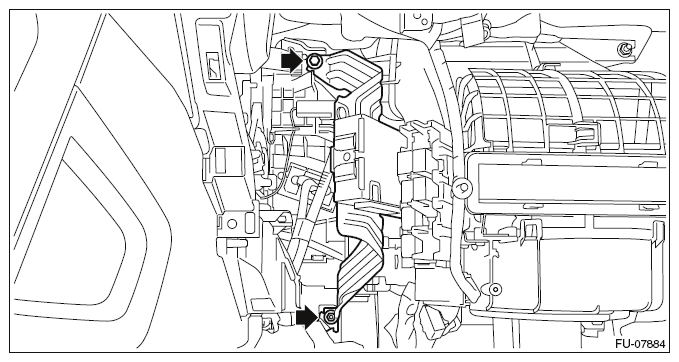

Fig 3: Locating ECM Bolts And Nuts

Courtesy of SUBARU OF AMERICA, INC.
