Engine Oil Temperature Sensor: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08317298Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A) from the engine oil temperature sensor, and remove the engine oil temperature sensor from the chain cover.

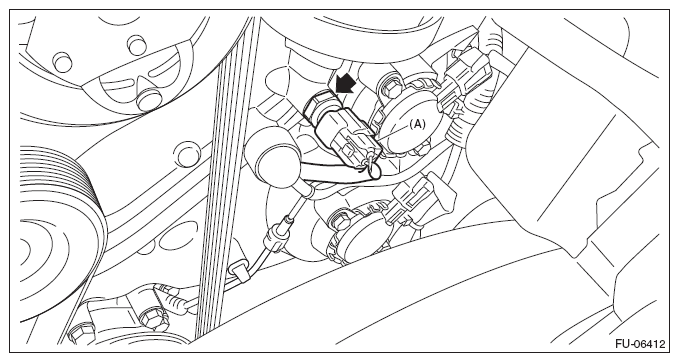

Fig 2: Disconnecting Connector From Engine Oil Temperature Sensor
G08315378Courtesy of SUBARU OF AMERICA, INC.
