Engine Wiring Harness: Installation

Route the engine wiring harness around the engine and connect connectors.
- Structural diagram 1

  Fig 1: Engine Wiring Harness Structural Diagram 1 (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

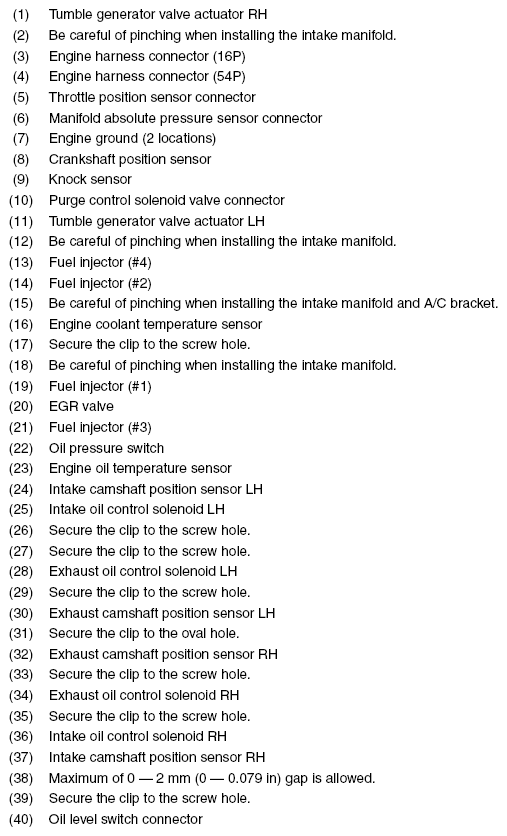

  Fig 2: Engine Wiring Harness Structural Diagram 1 (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.5 (0.8, 5.5)

  T2: 19 (1.9, 14.0)
- Structural diagram 2

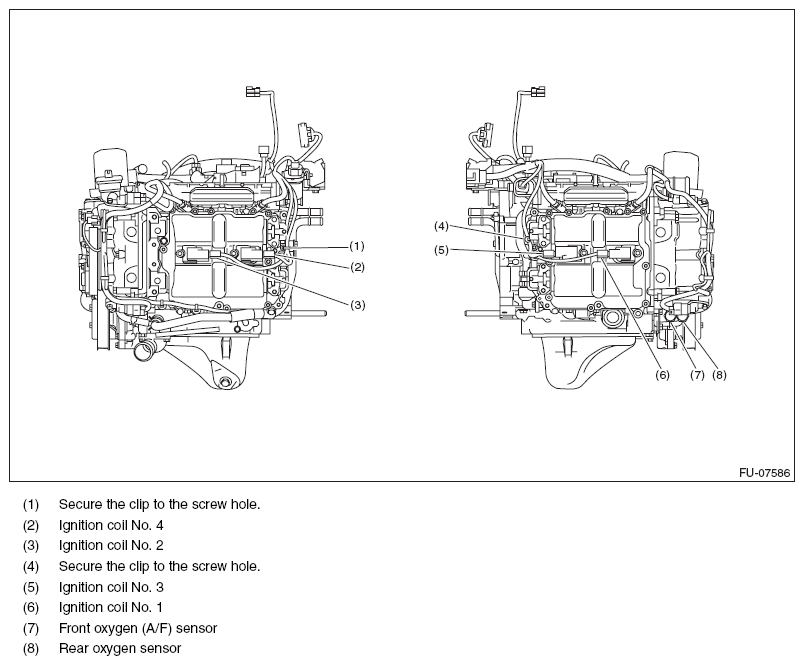

  Fig 3: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

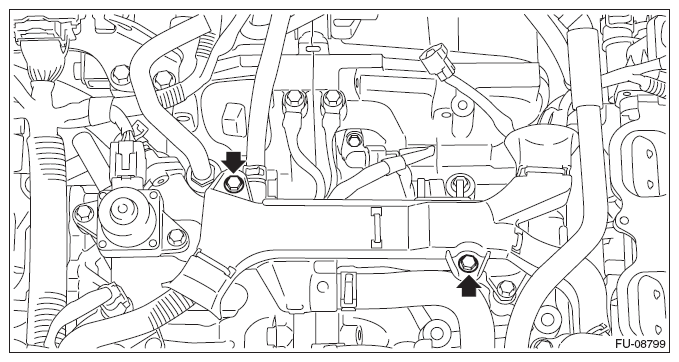

Fig 4: Locating Engine Wiring Harness Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold. Ref. to INSTALLATION , Intake Manifold.
Connect the battery ground terminal.

Fig 5: Connecting Battery Ground Terminal

G08317298

Courtesy of SUBARU OF AMERICA, INC.
