Fuel Delivery and Evaporation Lines: Installation: Notes
Install in the reverse order of removal while being careful of the following.
NOTE:

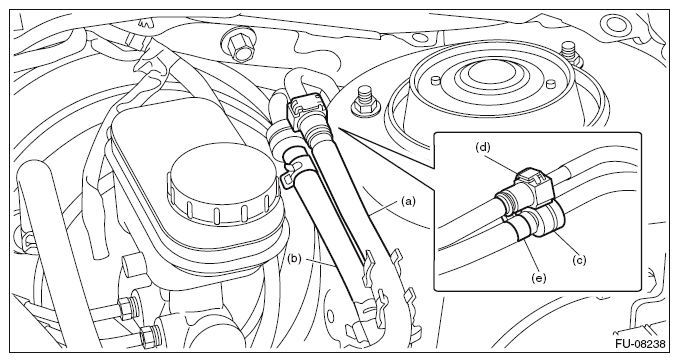

When connecting the fuel delivery tube (a) and evaporation hose (b), let the bushing (c) contact the quick connector (d) of fuel delivery tube to prevent the clip (e) from contacting the quick connector (d).
