Fuel Injector: Installation

Install in the reverse order of removal.

NOTE:

Use new fuel injector holder, O-rings, rubbers and seal rings.
Install the fuel injector so that the connector joint faces the connector rotation stopper side of the fuel pipe.
Securely put the flange section of fuel pipe into the groove of fuel injector holder.

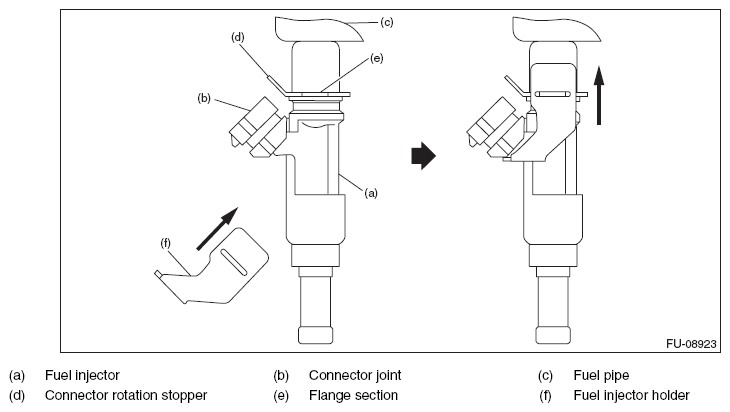

Fig 1: Installing Fuel Injector Connector To Fuel Pipe

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
