Fuel Injector: Removal

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
NOTE: This operation is required to release the inner pressure of the fuel tank.
When removing the RH side, also perform the following steps.
1. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

  Fig 2: Air Intake Boot, Clip And Clamps
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

  Fig 3: Removing Air Intake Boot From Air Cleaner Case (Rear) And Throttle Body
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connector from the mass air flow and intake air temperature sensor, and remove the clip (A) securing the bulkhead wiring harness.

  Fig 4: Disconnecting Connector From Mass Air Flow And Intake Air Temperature Sensor
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the air cleaner case (rear) together with the air cleaner element.
Fig 5: Removing Air Cleaner Case (Rear) With Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold protector.
- RH side

  Fig 6: Locating Intake Manifold Protector Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side
Fig 7: Locating Intake Manifold Protector Bolts (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors (A) from fuel injector.
Disconnect the quick connector (B) of the fuel delivery pipe from the fuel pipe.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from the pipes using a container or cloth.

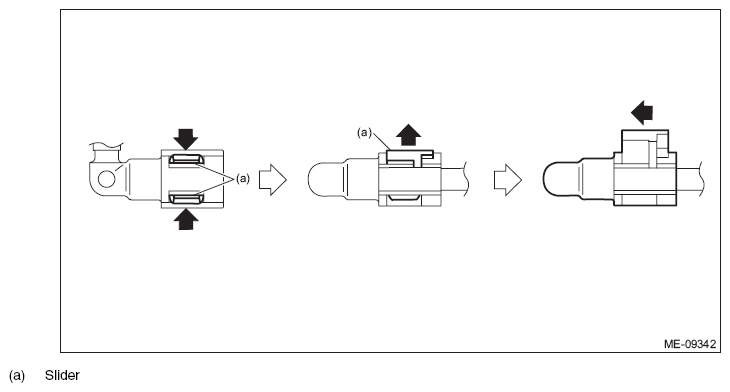

NOTE: Disconnect the quick connector as shown in the figure.

Fig 8: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

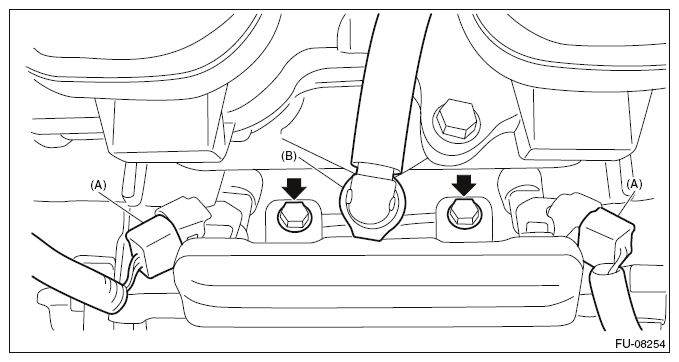

Remove the bolts which hold fuel pipe onto the cam carrier, and remove the fuel pipe together with the fuel injector.

Fig 9: Locating Fuel Pipe Bolts Onto Cam Carrier
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector from the fuel pipe.

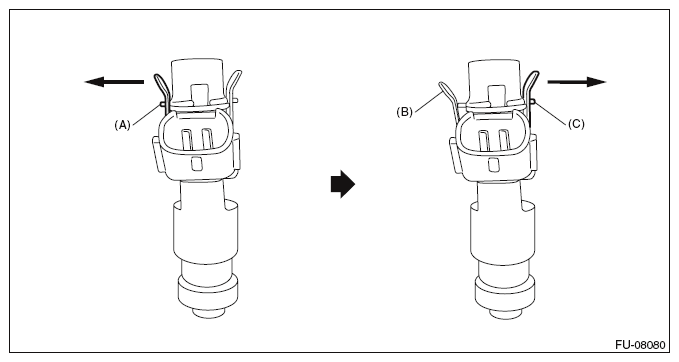

1. Remove the fuel injector holder from one side of flange section (A) of the fuel pipe.
2. While holding one side of fuel injector holder (B) you removed in step 1 by finger, remove the other side of fuel injector holder from the flange section (C) of the fuel pipe.

  Fig 10: Removing Fuel Injector From Fuel Pipe
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the fuel injector holder from the fuel pipe and fuel injector, and remove the fuel injector from the fuel pipe.
4. Remove the fuel injector on the LH side in the same manner.
