Intake Manifold: Assembly

Install the fuel pipe and cap to the intake manifold.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

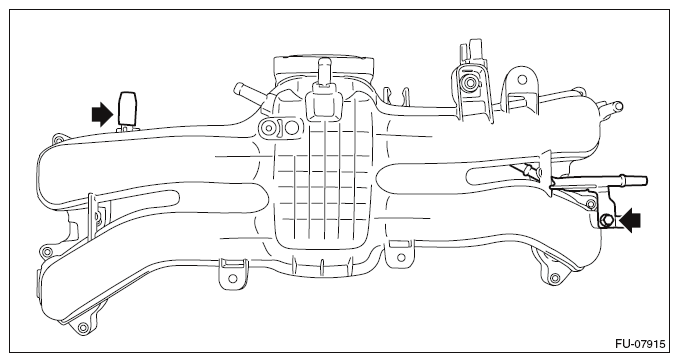

Fig 1: Locating Fuel Pipe And Cap To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel delivery pipe to the intake manifold.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert it all the way in before locking the slider.
- When it is difficult to lock the slider, check that the connector is fully inserted.
- After locking the slider, check again that the quick connector is securely connected.
NOTE: Connect the quick connector as shown in the figure.

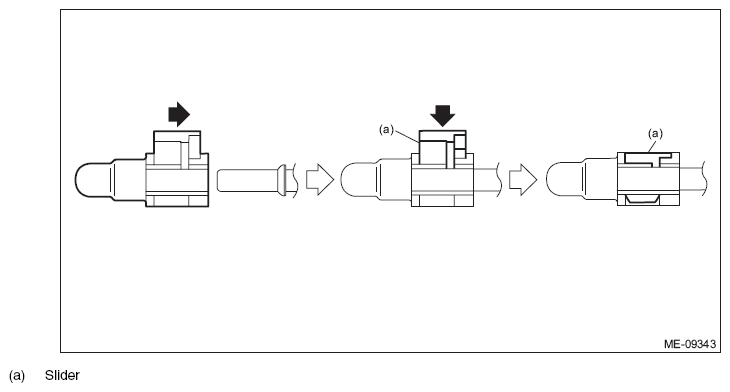

Fig 2: Connecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

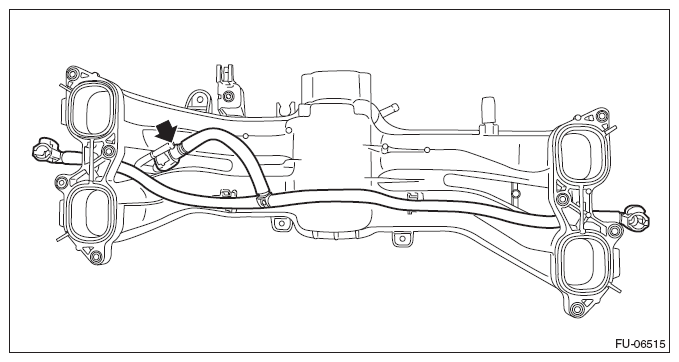

Fig 3: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the EGR pipe to the intake manifold.
NOTE:
- Use a new gasket.
- Tighten the EGR pipe when installing the intake manifold.

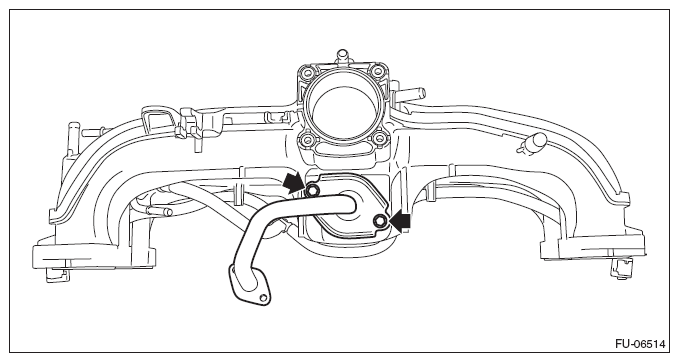

Fig 4: Locating EGR Pipe To Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the manifold absolute pressure sensor. Ref. to INSTALLATION , Manifold Absolute Pressure Sensor.
Install the purge control solenoid valve. Ref. to INSTALLATION , Purge Control Solenoid Valve.
Install the throttle body. Ref. to INSTALLATION , Throttle Body.
