Intake Manifold: Disassembly

Remove the throttle body. Ref. to REMOVAL , Throttle Body.
Remove the purge control solenoid valve. Ref. to REMOVAL , Purge Control Solenoid Valve.
Remove the manifold absolute pressure sensor. Ref. to REMOVAL , Manifold Absolute Pressure Sensor.
Remove the EGR pipe from intake manifold.

Fig 1: Removing EGR Pipe From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel delivery pipe from intake manifold.
NOTE: Disconnect the quick connector as shown in the figure.

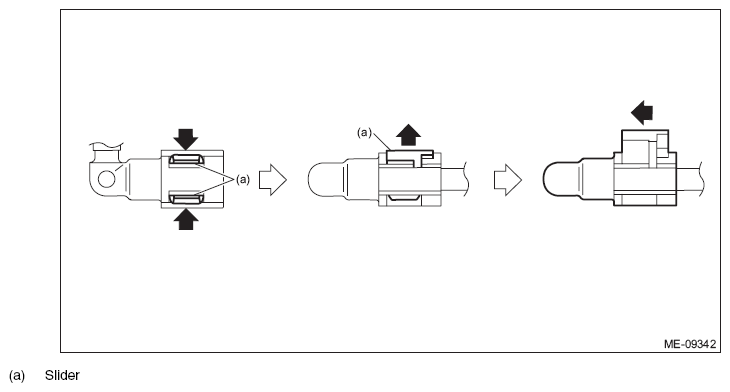

Fig 2: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe and cap from the intake manifold.

Fig 4: Locating Fuel Pipe And Cap From Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.
