Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 76.5 - 91.5° angle relative to the front of engine.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

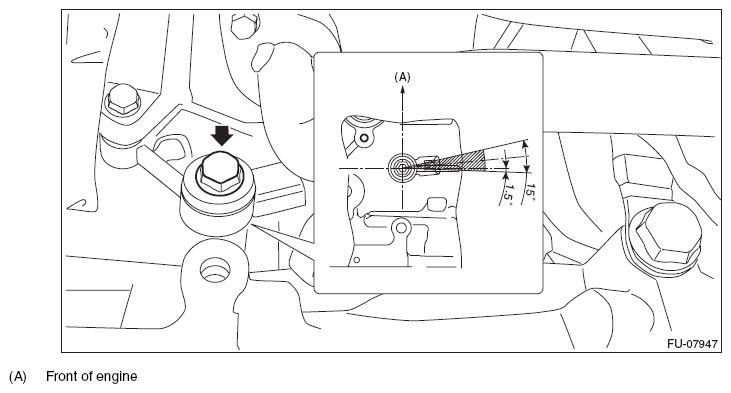

Fig 1: Knock Sensor Angle
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

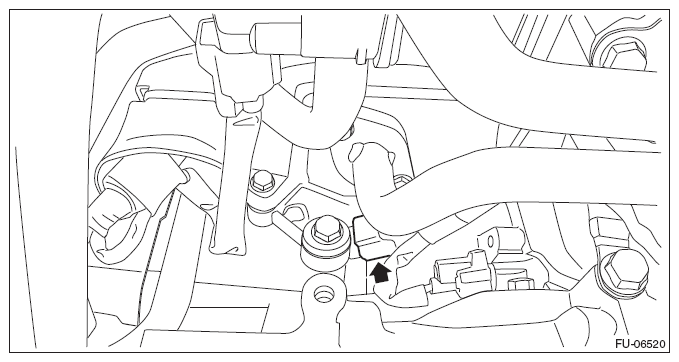

Fig 2: Locating Connector To Knock Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INSTALLATION , Air Intake Boot.
Connect the battery ground terminal.
