Main Relay: Inspection

  1. Check that the main relay has no deformation, cracks or other damages.
  2. Measure the resistance between main relay terminals.

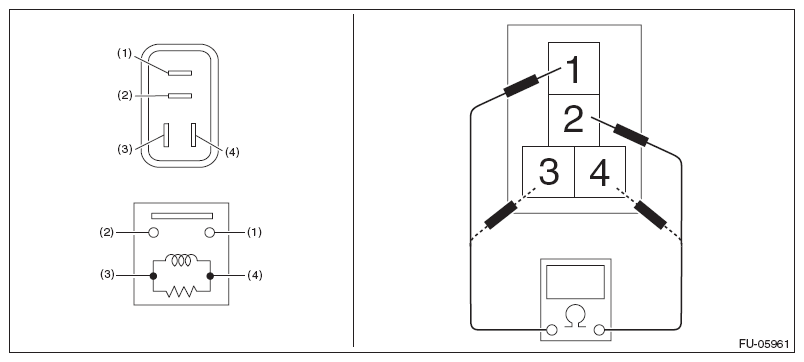

    Fig 1: Measuring Resistance Between Main Relay Terminals
    G08315468Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 and 2 1 MΩ or more
    3 and 4 130.4 - 230.8 Ω (when 20°C (68°F))
  3. Connect battery positive terminal to terminal No. 3 and battery ground terminal to terminal No. 4, and measure the resistance between the main relay terminals.

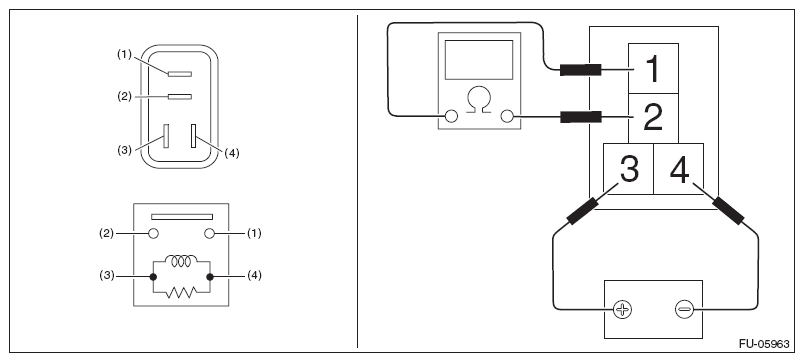

Fig 2: Measuring Resistance Between Main Relay Terminals
G08315469Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 Less than 1 Ω
