Check Motor

Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal No. 4, and check that the valve is fully opened on LH side and the valve is fully closed on RH side.
CAUTION: Do not power the motor for more than 10 seconds.

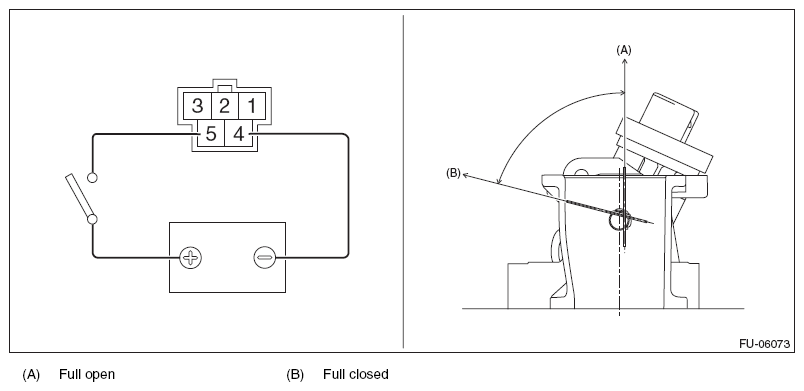

Fig 1: Testing Tumble Generator Valve Motor Mechanical Operation (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery positive terminal to terminal No. 4 and the battery ground terminal to terminal No. 5, and check that the valve is fully closed on LH side and the valve is fully opened on RH side.
CAUTION: Do not power the motor for more than 10 seconds.

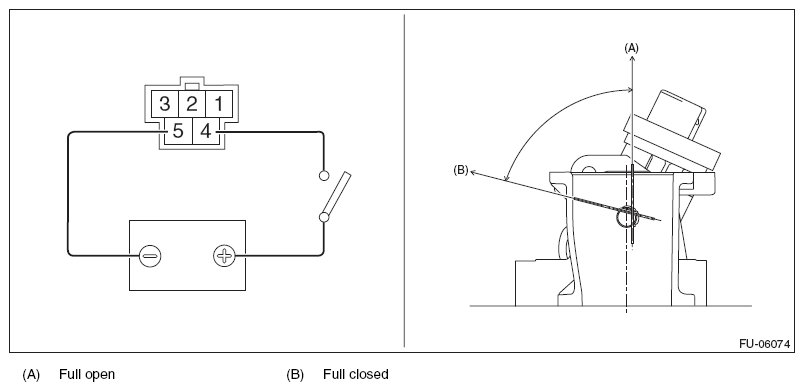

Fig 2: Testing Tumble Generator Valve Motor Mechanical Operation (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
