Tumble Generator Valve Assembly: Removal

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. Ref. to REMOVAL , Intake Manifold.
Disconnect the connector (A) from the tumble generator valve assembly.
Remove the tumble generator valve assembly from the cylinder head.
- RH side

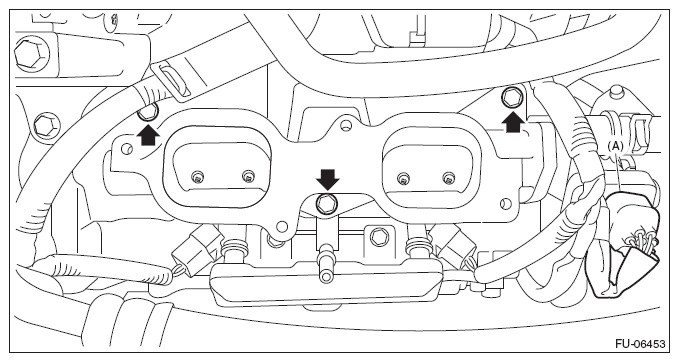

  Fig 2: Locating Tumble Generator Valve Assembly Mounting Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

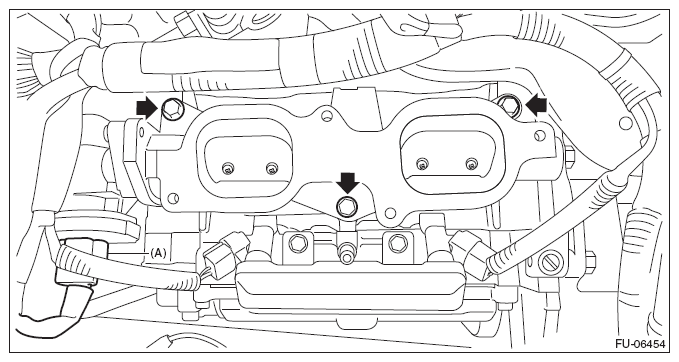

Fig 3: Locating Tumble Generator Valve Assembly Mounting Bolts (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Remove the cylinder head plate from cylinder head.

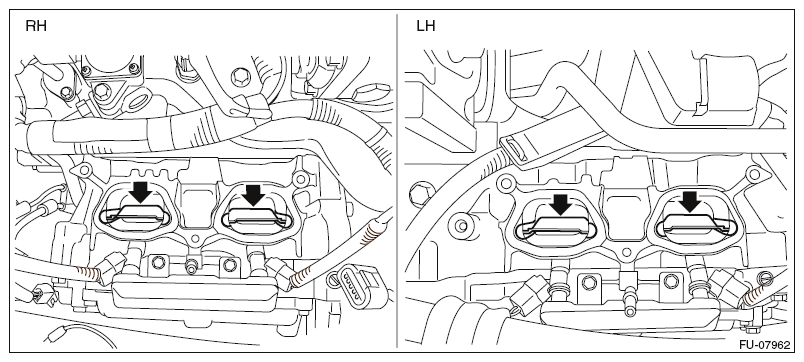

Fig 4: Locating Cylinder Head Plate Of Cylinder Head

Courtesy of SUBARU OF AMERICA, INC.
