Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

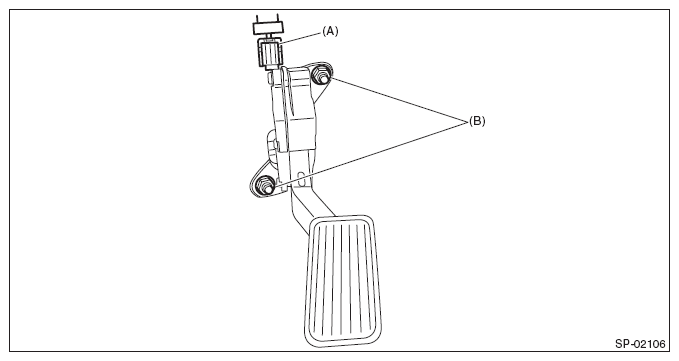

Fig 1: Removing Nut Securing Accelerator Pedal Assembly
G08315852Courtesy of SUBARU OF AMERICA, INC.
