Engine Control System (Diagnostics - Introduction) (H4DO): Electrical Component Location: Location: Sensor

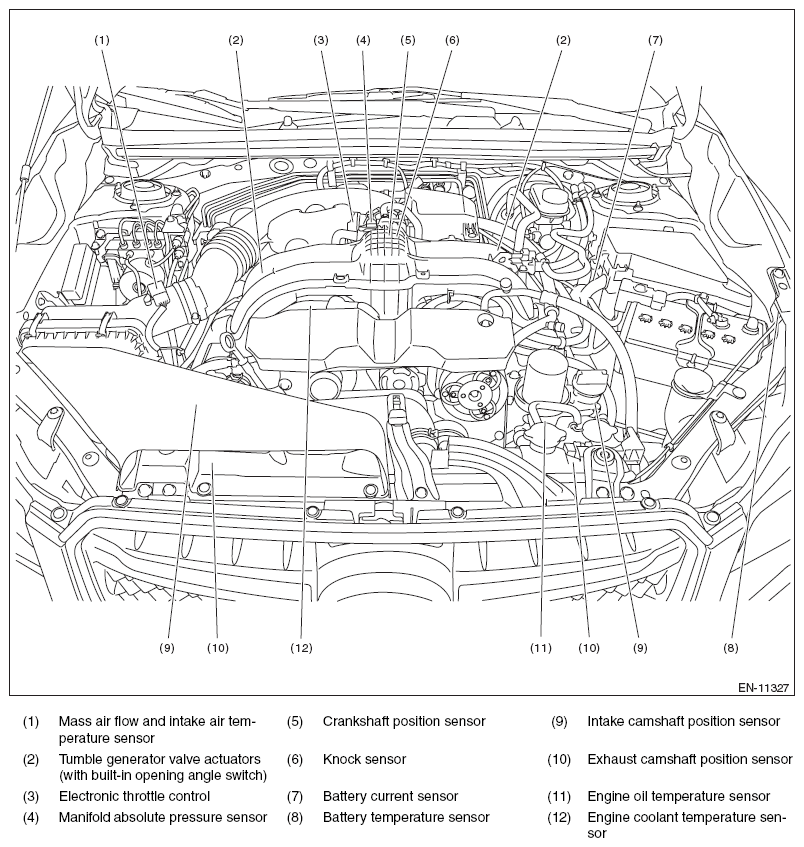

Fig 1: Sensor Related Components (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

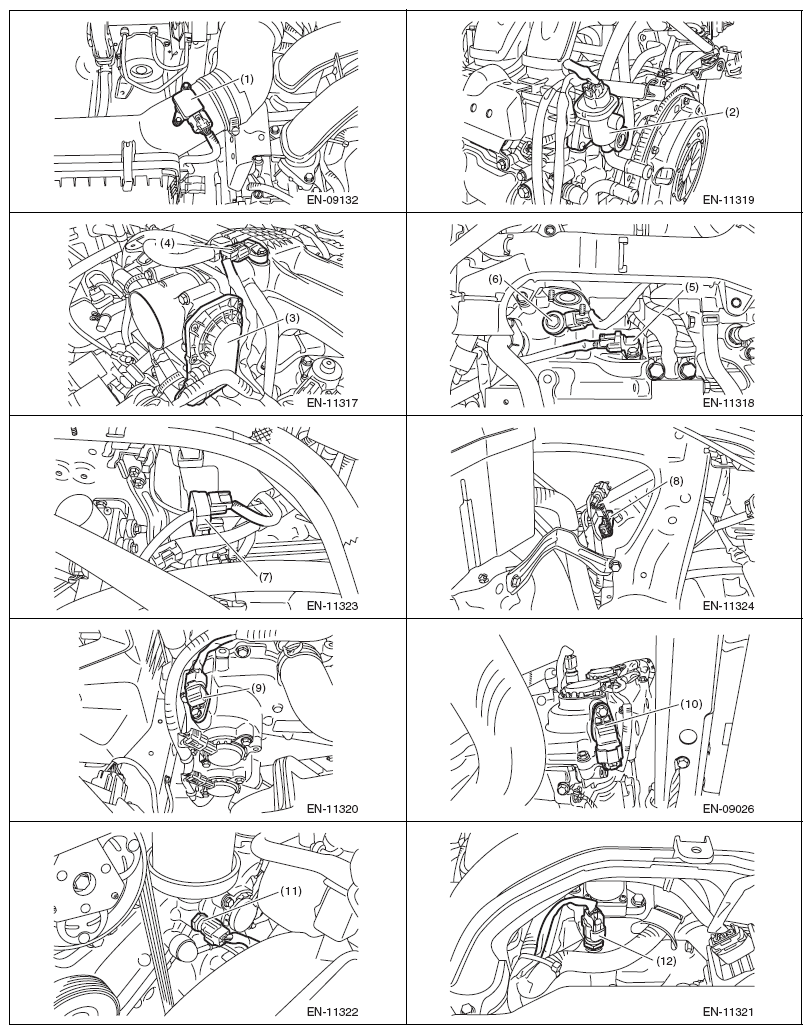

Fig 2: Sensor Related Components (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

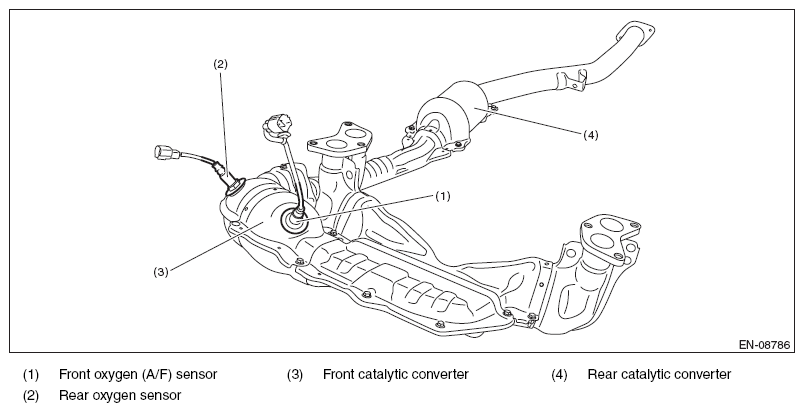

Fig 3: Sensor Related Components (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

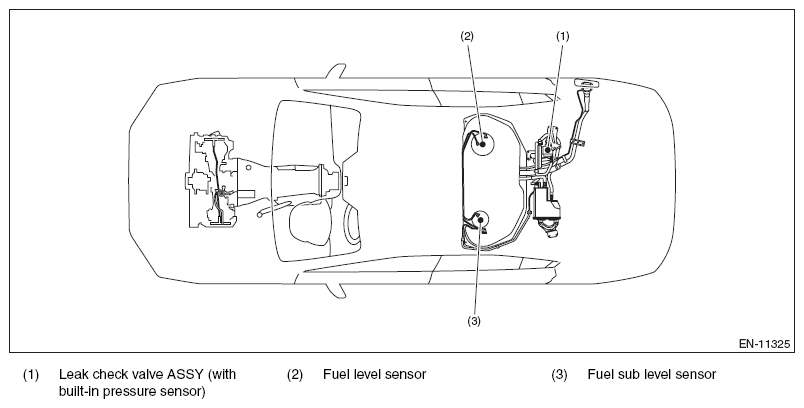

Fig 4: Sensor Related Components (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

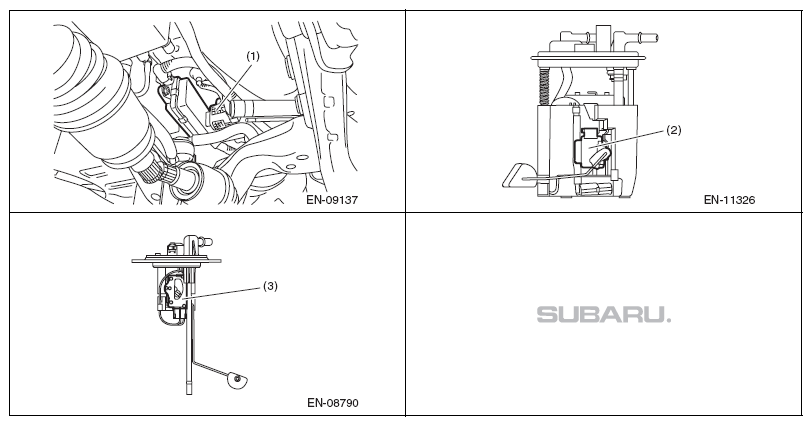

Fig 5: Sensor Related Components (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
