General Scan Tool
- Check that no DTC remains after clearing memory. Ref. to CLEAR MEMORY MODE .
- Warm up the engine.

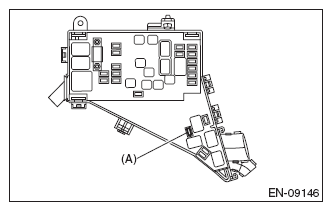

- Install the delivery (test) mode fuse (A).CAUTION: Do not use any fuses that are installed on the vehicle.
- Connect the general scan tool to data link connector located in the lower portion of the instrument panel (on the driver's side).CAUTION: Do not connect the scan tools except for Subaru Select Monitor and general scan tool.
- Start the engine.NOTE:
- Ensure the selector lever is placed in the "P" range before starting. (CVT model)
- Depress the clutch pedal when starting engine. (MT model)
- Turn the neutral position switch to ON using select lever or gear shift lever.
- Depress the brake pedal to turn the brake switch ON. (CVT model)
- Keep the engine speed in 2, 500 - 3, 000 rpm range for 40 seconds.
- Place the select lever or gear shift lever in "D" position (CVT model) or "1st gear" (MT model) and drive the vehicle at 5 to 10 km/h (3 to 6 MPH).NOTE:
- For AWD model, release the parking brake.
- The rotating speed difference between front and rear wheels may illuminate the ABS warning light, but this does not indicate a malfunction. When engine control system diagnosis is finished, perform the VDC memory clearance procedure of self-diagnosis function. Ref. to Clear Memory Mode .
- Using the general scan tool, check for DTC and record the result(s).
NOTE:
- For detailed operation procedures, refer to "Application help".
- For details concerning DTC, refer to "List of Diagnostic Trouble Code (DTC)". Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
