Select Lever: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery. Ref. to BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Lift up the vehicle.
Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
Remove the center exhaust cover.

Fig 1: Center Exhaust Cover Component Location
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from the arm COMPL.
CAUTION: Do not apply extra overload while holding the part (A).

Fig 2: Arm COMPL Holding Part Dimension
Courtesy of SUBARU OF AMERICA, INC.

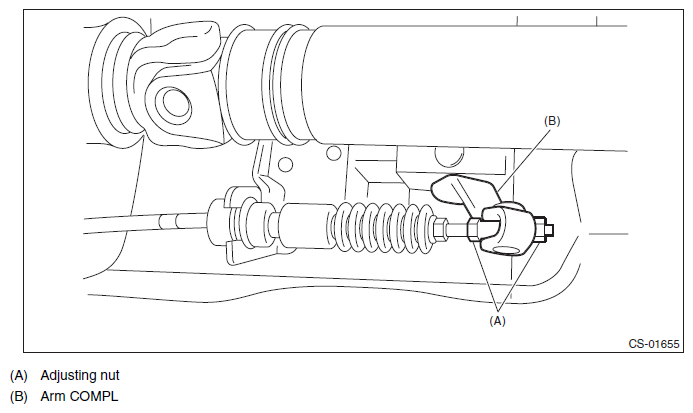

Fig 3: Adjusting Nut And Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

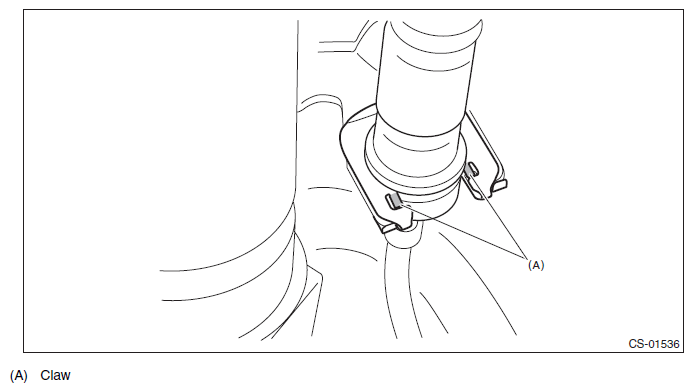

Fig 4: Locating Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Shift the select lever to "N" range.
Lower the boot assembly vertically toward the lever. (Model with boot shifter)

Fig 5: Installing Boot Assembly Vertically Toward Lever
Courtesy of SUBARU OF AMERICA, INC.
Lower the cover grip AT vertically toward the lever. (Model with gate shifter)

Fig 6: Installing Cover Grip AT Vertically Toward Lever (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.
- Model with boot shifter

  Fig 7: Removing Clamp Grip Pin (Model With Boot Shifter)
  Courtesy of SUBARU OF AMERICA, INC.
- Model with gate shifter
Fig 8: Removing Clamp Grip Pin (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.
- Model with boot shifter

  Fig 9: Removing Grip Assembly - (Model With Boot Shifter)
  Courtesy of SUBARU OF AMERICA, INC.
- Model with gate shifter
Fig 10: Removing Grip Assembly - (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box. Ref. to REMOVAL , Console Box.
Remove the cover - shift lever. Ref. to REMOVAL , Console Box.
Disconnect the connector, and remove the indicator cover from the housing. (Model with gate shifter)

Fig 11: Housing Indicator Cover (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the housing with the blind A and blind B. (Model with gate shifter)

Fig 12: Removing Blind A And B Housing (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind B. (Model with gate shifter)

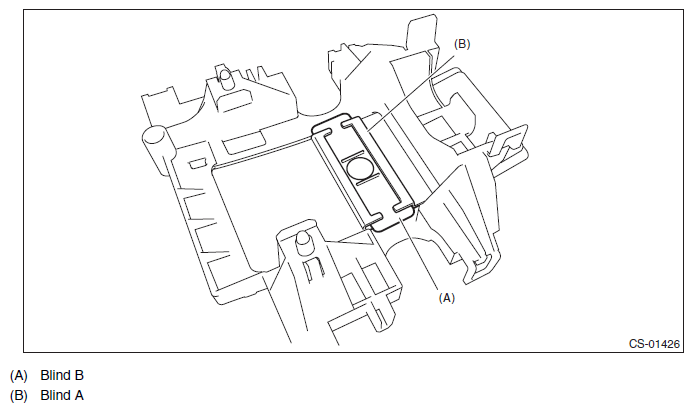

Fig 13: Blind A And B Location
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind A from the housing. (Model with gate shifter)

Fig 14: Blind A Housing (Model With Gate Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the panel center LWR LH and RH. Ref. to REMOVAL , Console Box.
Disconnect the connector, and remove the indicator assembly. (Model with boot shifter)

Fig 15: Indicator Assembly Location (Model With Boot Shifter)
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from the select lever assembly.

Fig 16: Locating Select Lever Assembly Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

Fig 17: Harness Connector Location
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove the select lever assembly.

Fig 18: Locating Select Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
