Fuel Filler Pipe: Disassembly

Remove the bracket bolt (A) securing the drain pipe, and remove the drain hose from the clip for the fuel filler pipe.

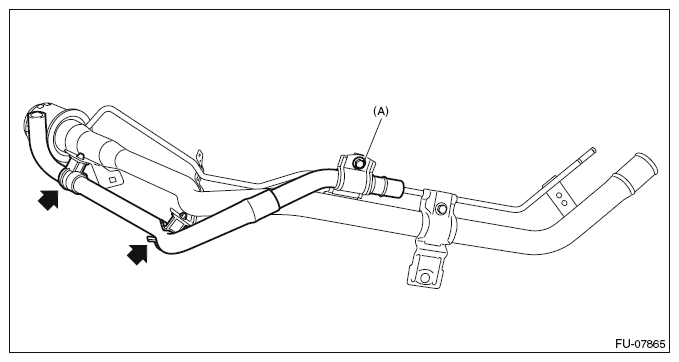

Fig 1: Locating Drain Hose Clips
Courtesy of SUBARU OF AMERICA, INC.
Using a marker pen, make alignment marks (A) on the fuel filler pipe and the bracket.
Remove the bracket bolt (B) securing the fuel filler pipe, and remove the clip from the fuel filler pipe.

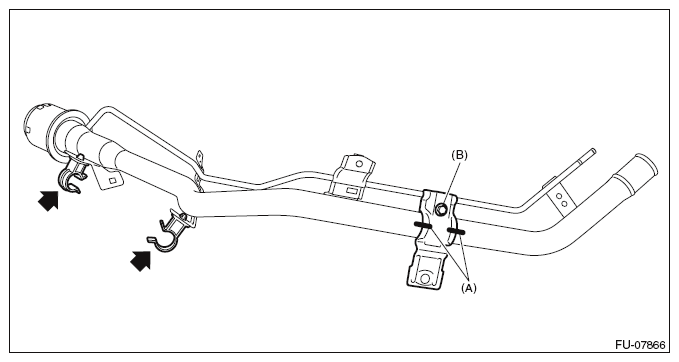

Fig 2: Locating Fuel Filler Pipe Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the neck holder from the fuel filler pipe.

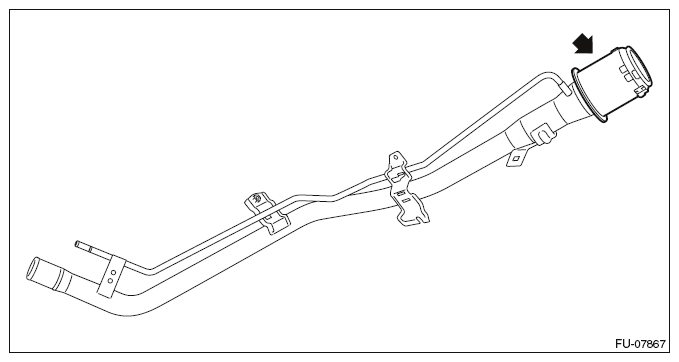

Fig 3: Locating Fuel Filler Pipe Neck Holder

Courtesy of SUBARU OF AMERICA, INC.
