MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 1: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.

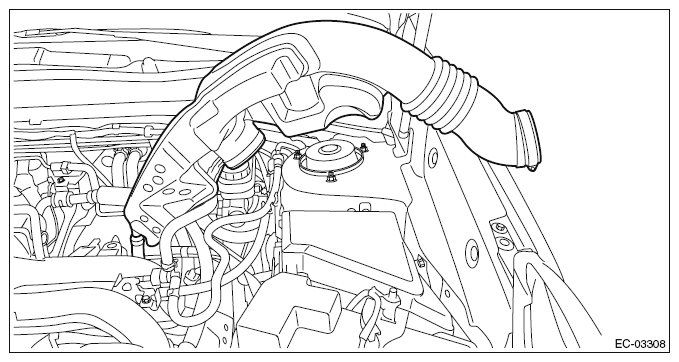

Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

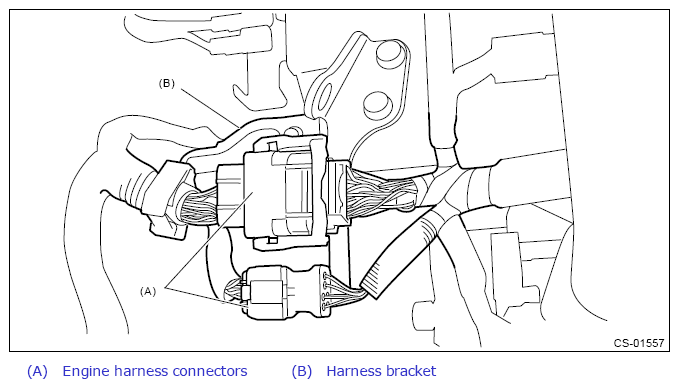

Disconnect the engine harness connectors, then remove the harness bracket.

Fig 3: Identifying Engine Harness Connector And Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the transmission radio ground cord terminal.

Fig 4: Identifying Transmission Radio Ground Cord Terminal
Courtesy of SUBARU OF AMERICA, INC.

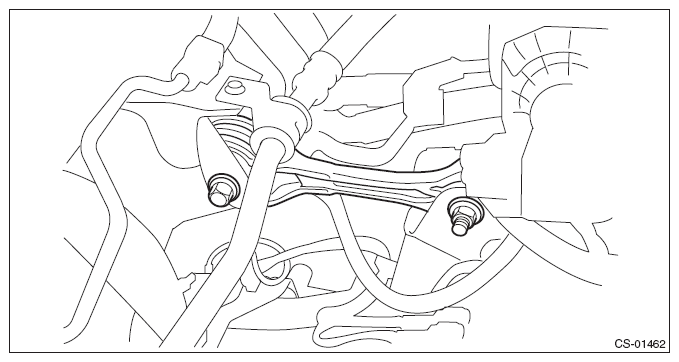

Remove the pitching stopper.

Fig 5: Identifying MT Gear Select Cable Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the transmission under cover.

Fig 6: Identifying Transmission Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>REMOVAL .
Remove the center exhaust cover.

Fig 7: Identifying MT Gear Select Cable Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>Propeller Shaft>REMOVAL .
Remove the cable clamp and take out the MT gear select cable from the clamp.

Fig 8: Identifying MT Gear Select Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Place the transmission jack under the transmission.

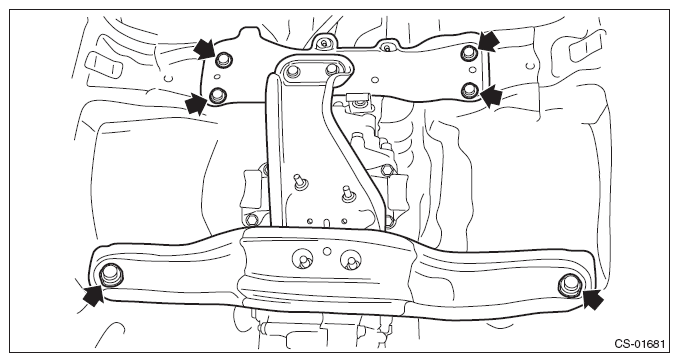

Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).

Fig 9: Locating Transmission, Front And Rear Crossmember Bolts
Courtesy of SUBARU OF AMERICA, INC.

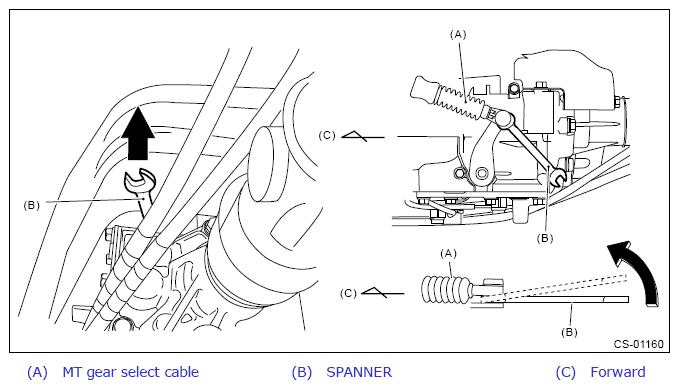

Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
NOTE:
- Use a spanner with 11 to 13 in size.
- The thickness of the spanner must not exceed 6 mm (0.2 in).
Fig 10: Removing MT Gear Select Cable Using Spanner
Courtesy of SUBARU OF AMERICA, INC.

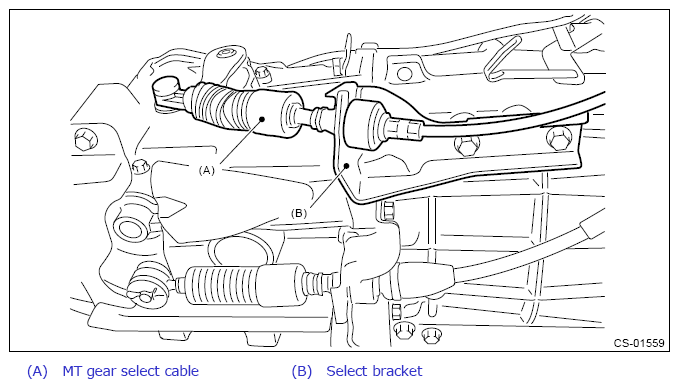

Remove the MT gear select cable and select bracket as a single unit from the transmission body.

Fig 11: Identifying MT Gear Select Cable And Select Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 12: Locating MT Gear Select Cable Cover Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.

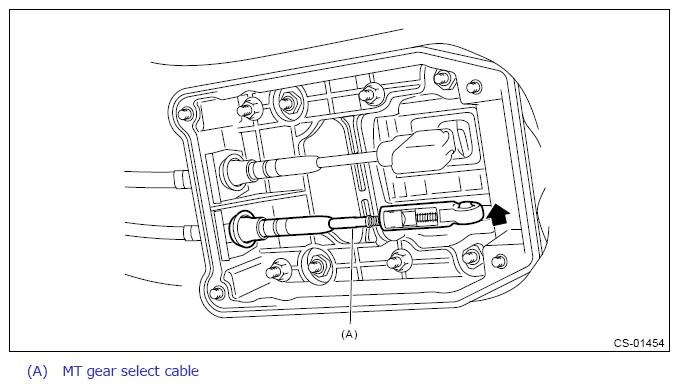

Disconnect the MT gear select cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Push the MT gear select cable in the direction of arrow, and remove it.

Fig 13: Removing MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.

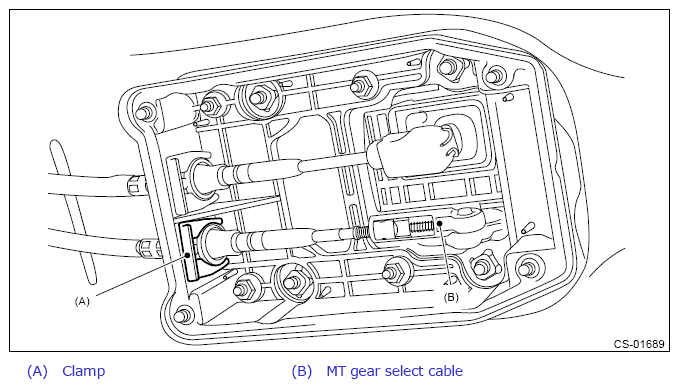

Remove the clamp which holds the MT gear select cable.

Fig 14: Identifying MT Gear Select Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear select cable from cable cover assembly.
CAUTION: Do not bend the MT gear select cable sharply.

Fig 15: Identifying MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
