Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

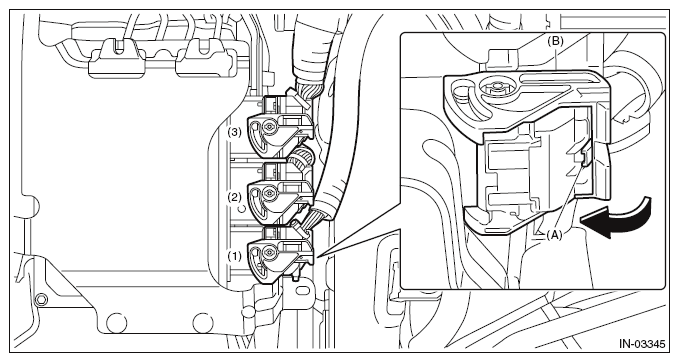

While pressing the section (A) shown in the figure, move the lock lever (B) in the direction of the arrow to disconnect the connectors from the ECM in numerical order as shown in the figure.

Fig 1: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.

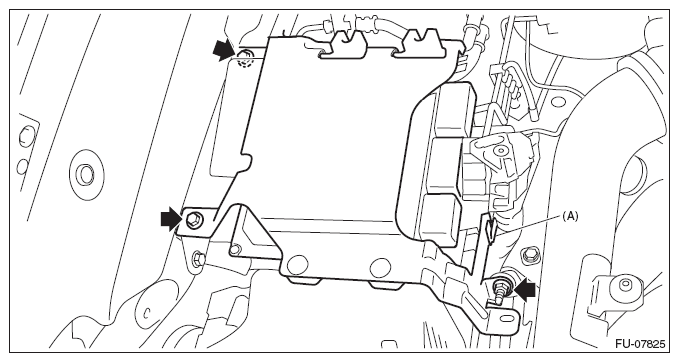

Remove the bolt, nut, and clip (A), and remove the ECM.

Fig 2: Locating ECM Cover Bolt, Nut And Clip
Courtesy of SUBARU OF AMERICA, INC.

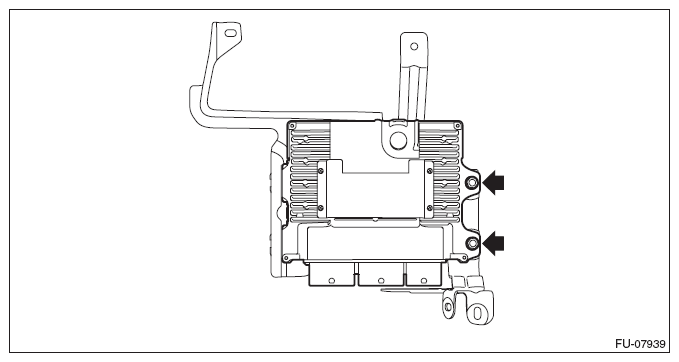

Remove the ECM from the bracket.

Fig 3: Locating ECM Bracket Nuts
Courtesy of SUBARU OF AMERICA, INC.

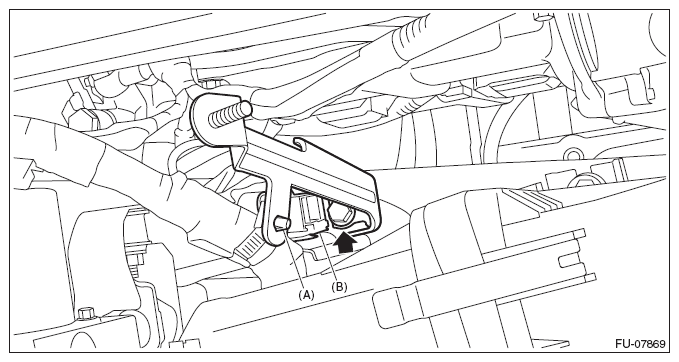

Remove clip (A) and connector (B), and remove the ECM bracket.

Fig 4: Locating ECM Bracket Bolt

Courtesy of SUBARU OF AMERICA, INC.
