Fuel Injector Relay: Removal

Disconnect the ground cable from battery.
Remove the cover from the relay block on the front side of the front strut RH.

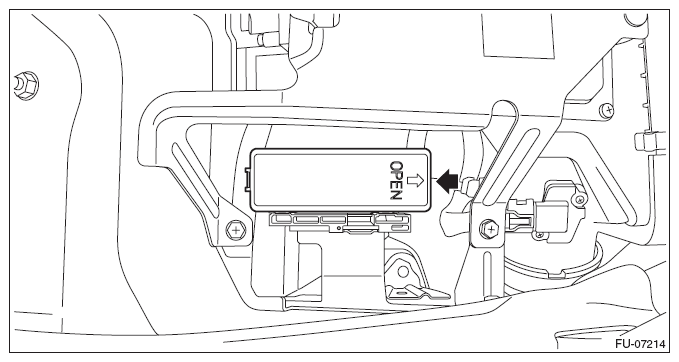

Fig 1: Locating Relay Block Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector relay from relay block.

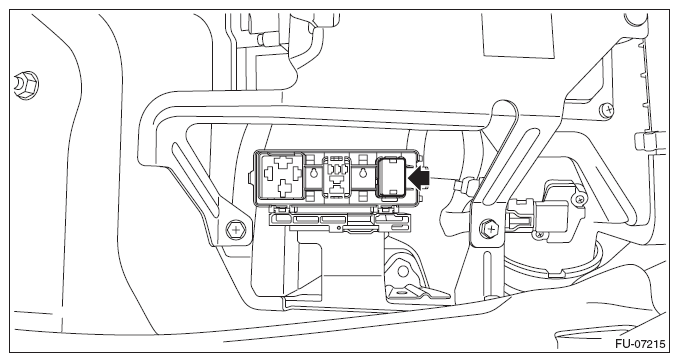

Fig 2: Locating Fuel Injector Relay From Relay Block

Courtesy of SUBARU OF AMERICA, INC.
