Main Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  3. Remove the main relay.

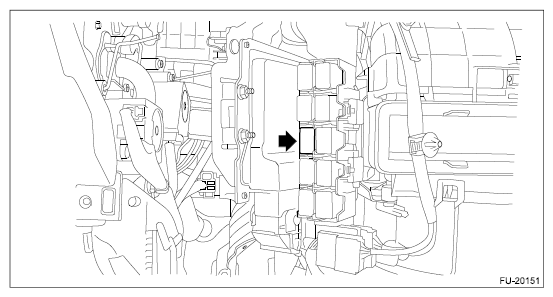

Fig 1: Locating Main Relay From Relay Block
G11263391Courtesy of SUBARU OF AMERICA, INC.
