Outback Model

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel - rear apron RH. <Ref. to OUTBACK MODEL , REMOVAL, Rear Quarter Trim.>
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

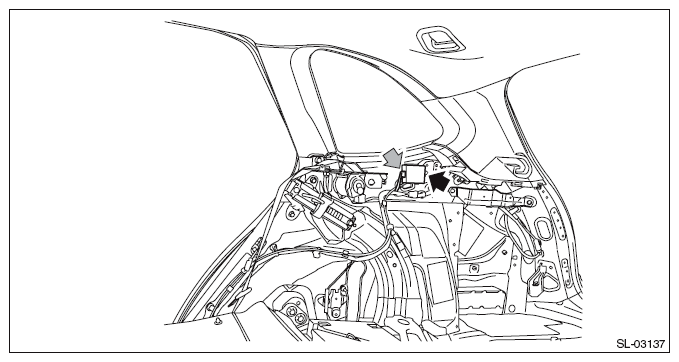

    Fig 1: Disconnecting Keyless Entry Control Module Connector - Outback Model
    G10272970Courtesy of SUBARU OF AMERICA, INC.
