Sedan Model

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel assembly - rear shelf. <Ref. to REMOVAL , Rear Shelf Trim.>
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

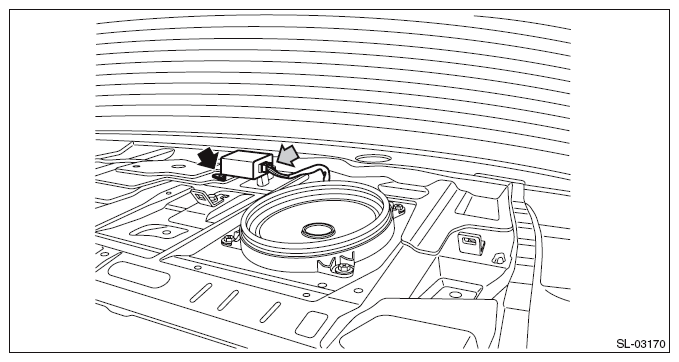

    Fig 1: Disconnecting Keyless Entry Control Module Connector - Sedan Model
    G10272969Courtesy of SUBARU OF AMERICA, INC.
