Keyless Entry Control Module

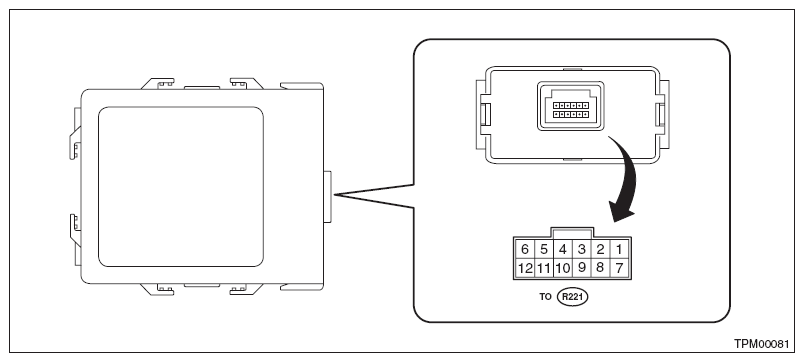

Fig 1: Keyless Entry Control Module Wiring Diagram
G07914049Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Item Measuring condition Standard
4 (IG) ←→ Chassis ground Resistance IG OFF → ON 0 V → 10 - 14 V
5 (GND) ←→ Chassis ground Resistance Always Less than 1 Ω
6 (+B) ←→ Chassis ground Voltage Always 10 - 14 V
11 (U-ART com.) - Cannot be measured -
