Fuel Line

• Fuel line 1

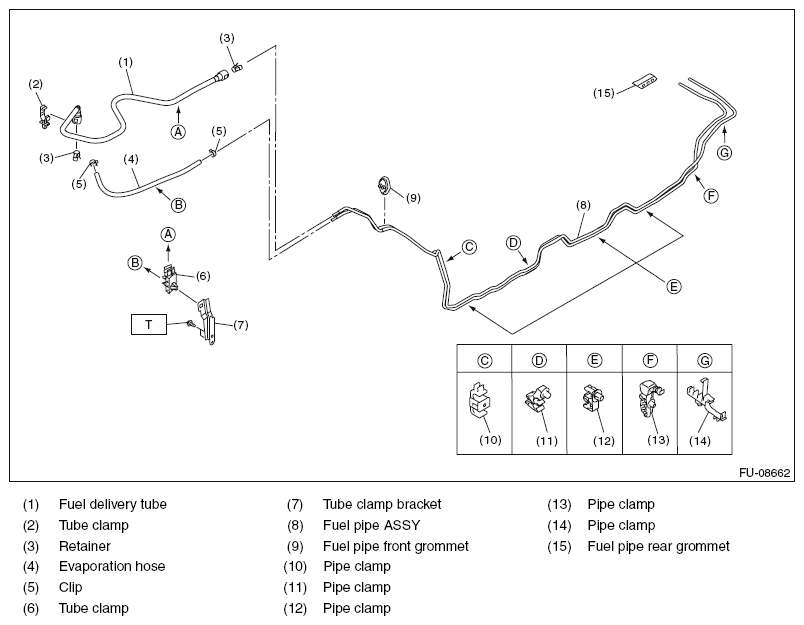

Fig 1: Exploded View Of Fuel Line 1 Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

• Fuel line 2

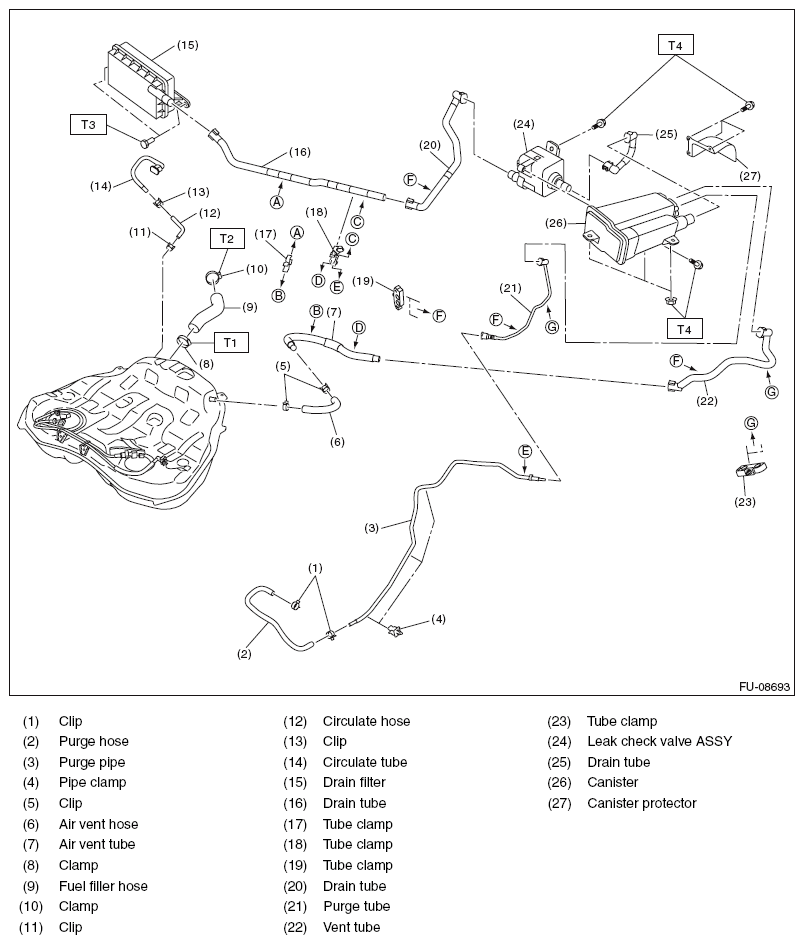

Fig 2: Exploded View Of Fuel Line 2 Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.5 (0.3, 1.8)

T3: 7.5 (0.8, 5.5)

T4: 8 (0.8, 5.9)
