Engine Wiring Harness: Removal

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
Remove the intake manifold assembly. Ref. to REMOVAL , Intake Manifold Assembly.
Disconnect each connector to remove the engine wiring harness.
- Structural diagram 1

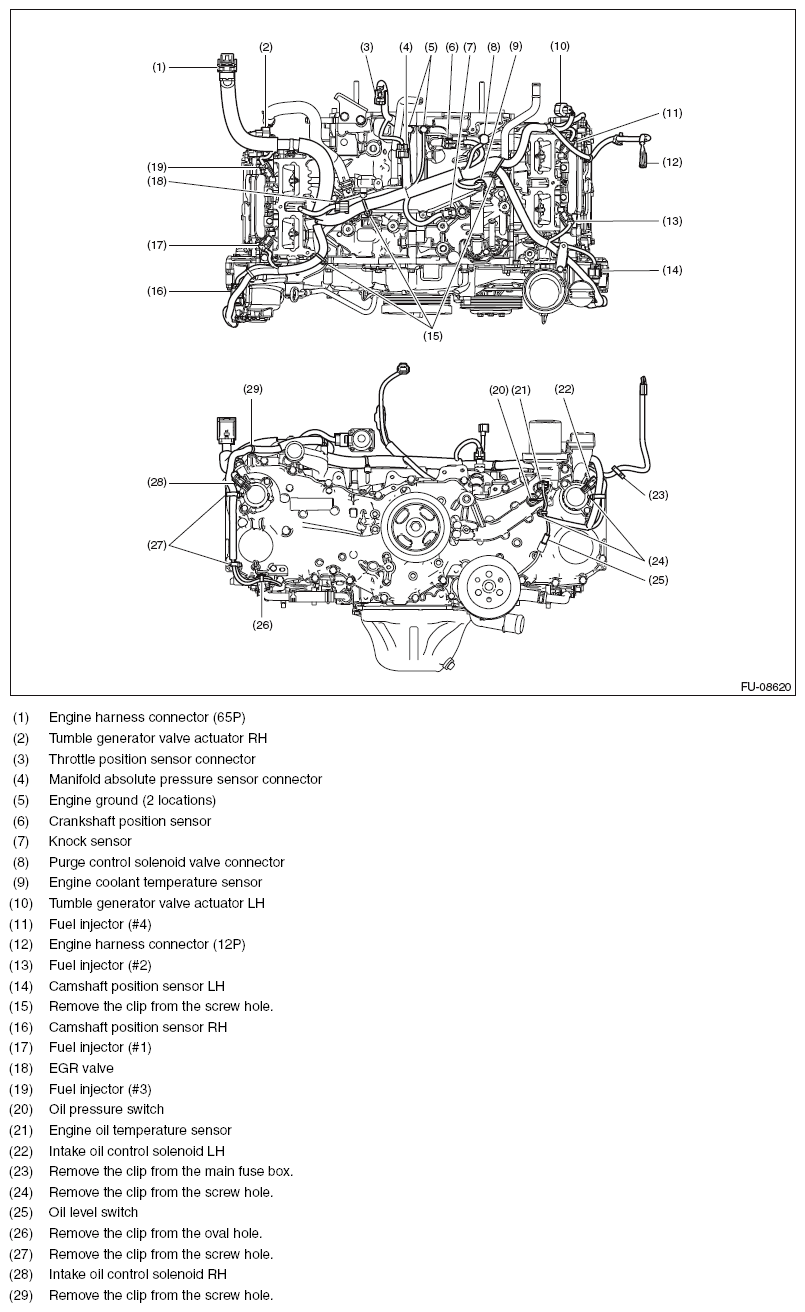

  Fig 1: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.
  - Structural diagram 2

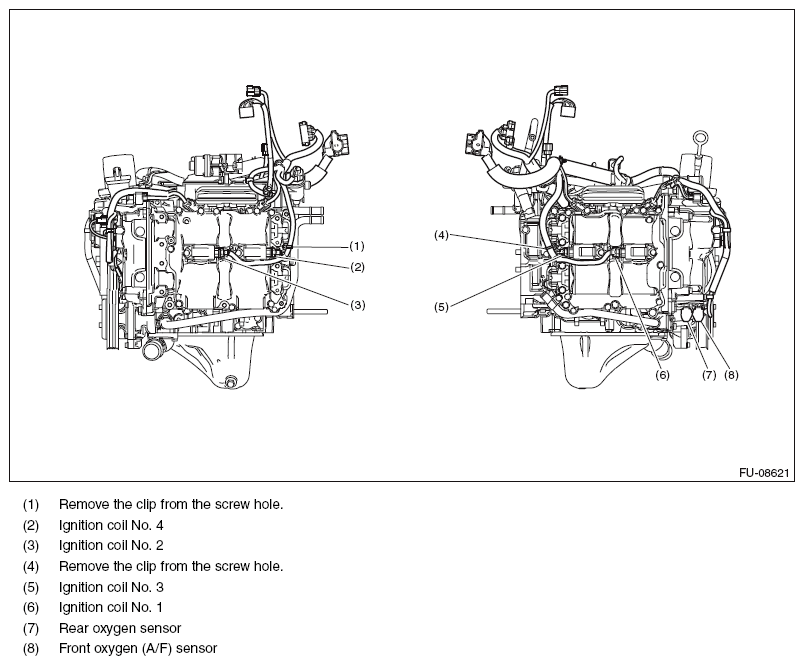

  Fig 2: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
