Fuel Filler Pipe

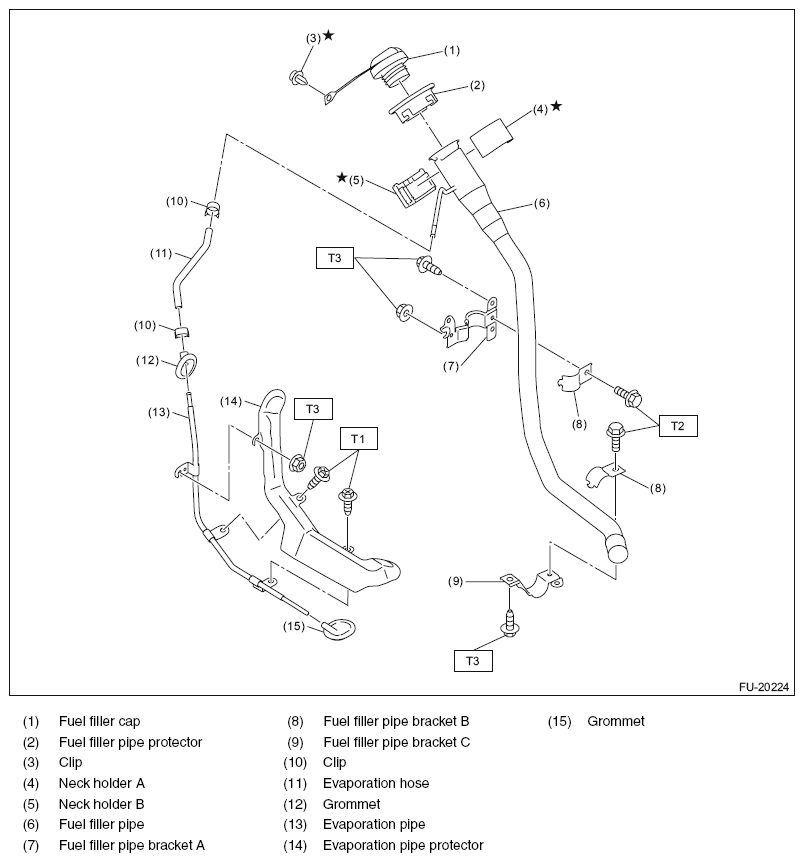

Fig 1: Exploded View Of Fuel Filler Pipe Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 7.35 (0.7, 5.4)

T3: 7.5 (0.8, 5.5)
