Knock Sensor: Inspection

  1. Check that the knock sensor has no deformation, cracks or other damages.
  2. Measure the resistance between knock sensor terminals.

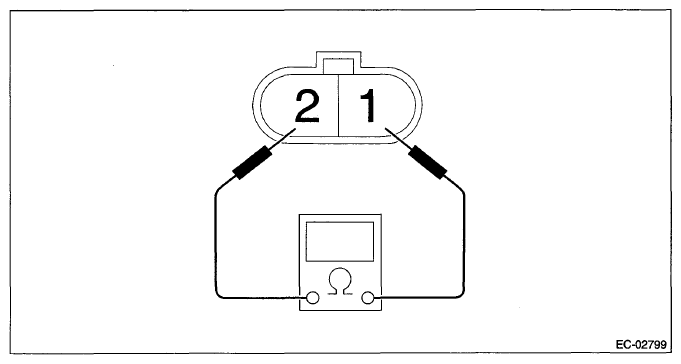

Fig 1: Measuring Resistance Of Knock Sensor Terminals
G07664927Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 560±28 kΩ
