Main Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
  2. Remove the main relay from main fuse box.

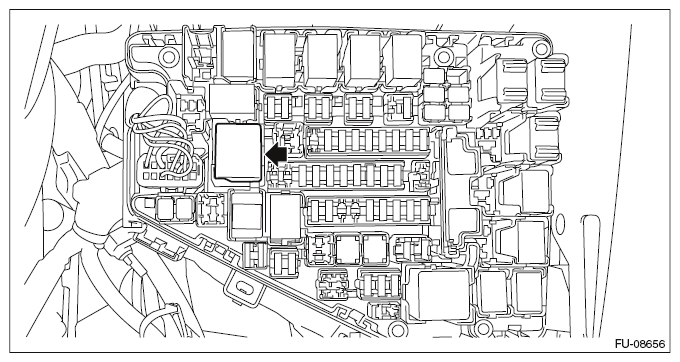

Fig 1: Locating Main Relay Of Main Fuse Box Component Location
G10262210Courtesy of SUBARU OF AMERICA, INC.
