Accelerator Pedal: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

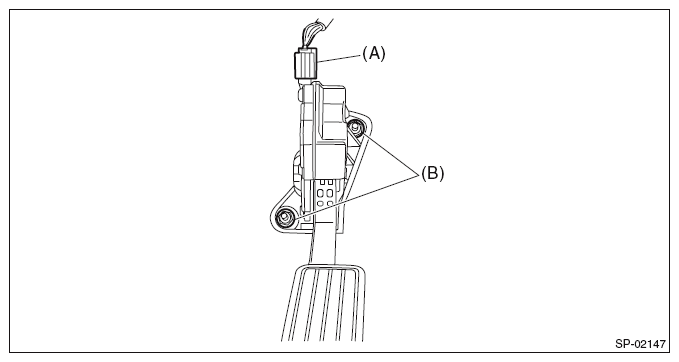

Fig 1: Accelerator Pedal Assembly Connector And Nuts
G10263085Courtesy of SUBARU OF AMERICA, INC.
