Components With Torque Specifications

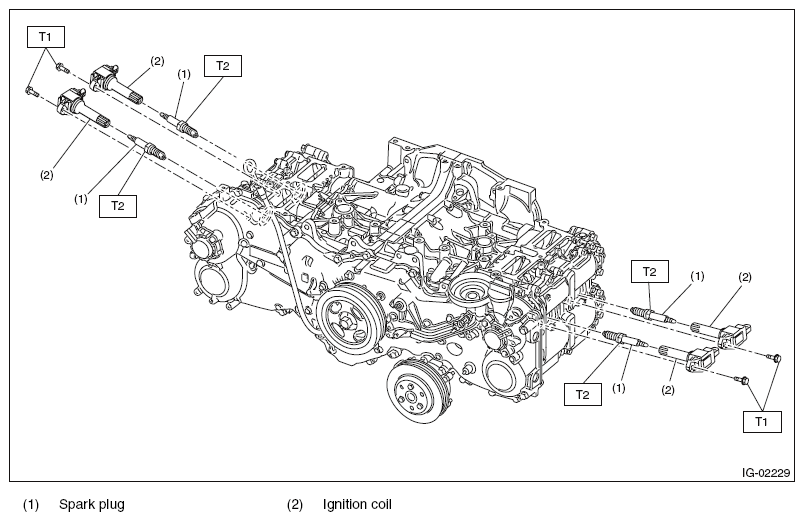

Fig 1: Exploded View Of Engine Ignition System Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.0 (0.8, 5.9)

T2: 18 (1.8, 13.3)
