LH Side

  1. Remove the battery. Ref. to REMOVAL , Battery.
  2. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    Fig 1: Pressing Spring (LH Side)
    G10267378Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ignition coil.

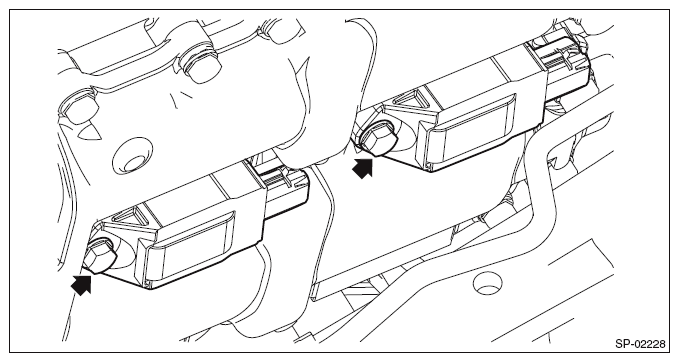

    Fig 2: Locating Ignition Coil Bolts (LH Side)
    G10263092Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
