Drive Cycle O

DTC	Item	Condition
P0441	EVAP SYSTEM (CPC) INCORRECT PURGE FLOW	-

Diagnostic procedure:

WARNING: When performing drive cycle O on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

Drive according to the drive pattern described below.

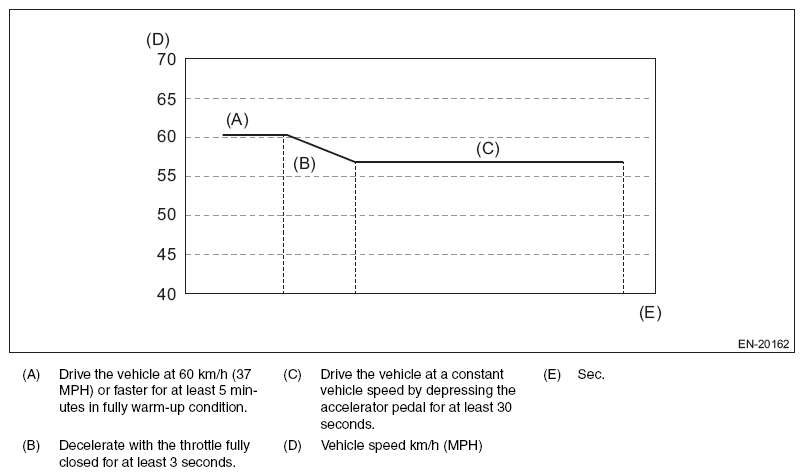

Fig 1: Driving Pattern (Drive Cycle O)
Courtesy of SUBARU OF AMERICA, INC.
Park the vehicle on a safe place.
NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
With the vehicle idling, read the temporary diagnostic code of DTC using Subaru Select Monitor or general scan tool.

NOTE:

For detailed operation procedures, refer to "Read Diagnostic Trouble Code (DTC)". Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC)
In the step 3, if the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
