Engine Control System (Diagnostics - Introduction) (H4DO): Electrical Component Location: Location: Sensor

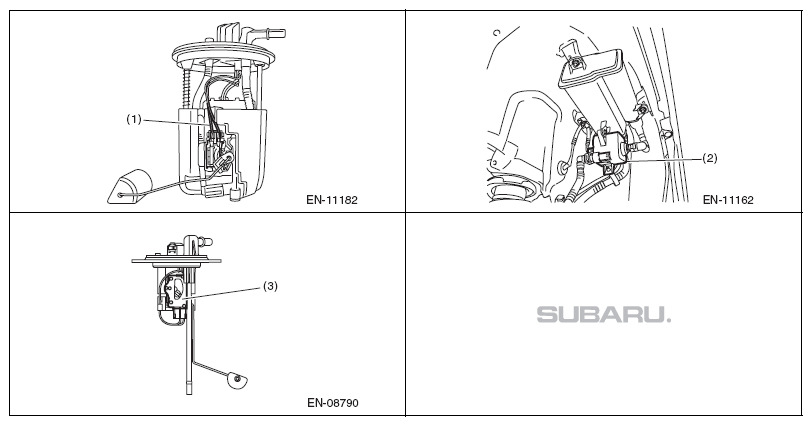

Fig 1: Engine Sensor Component Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

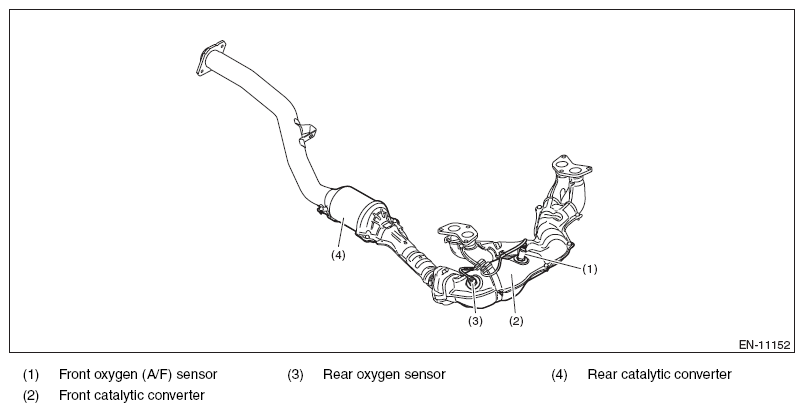

Fig 2: Engine Sensor Component Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

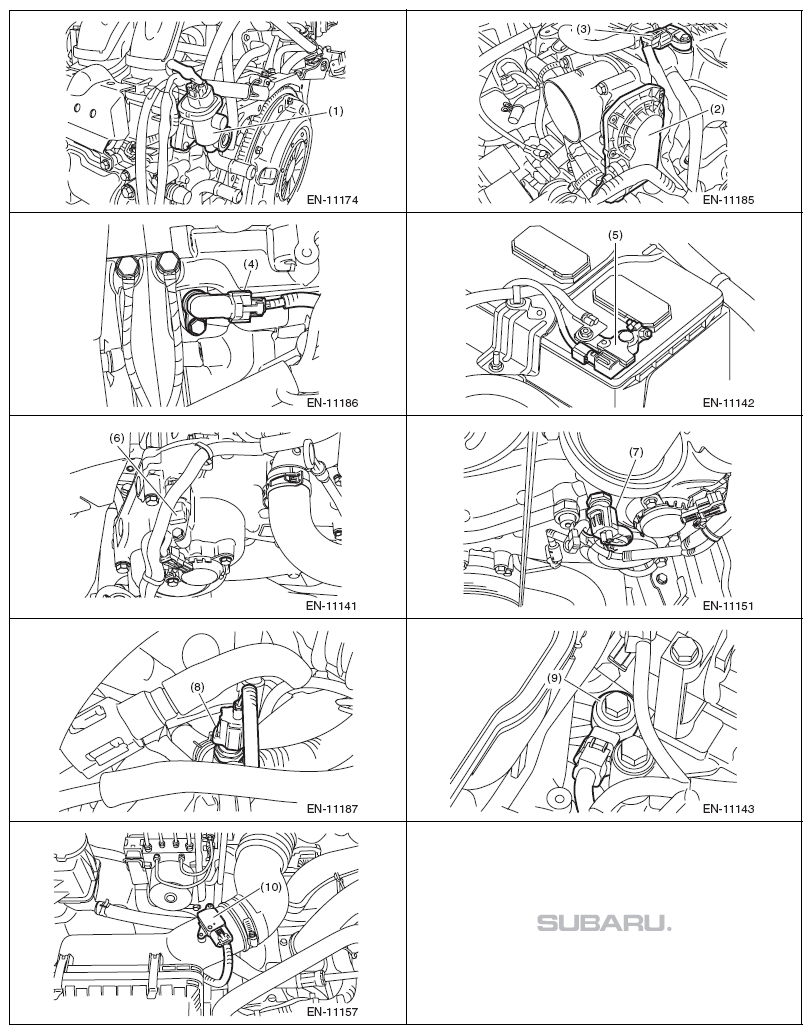

Fig 3: Engine Sensor Component Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

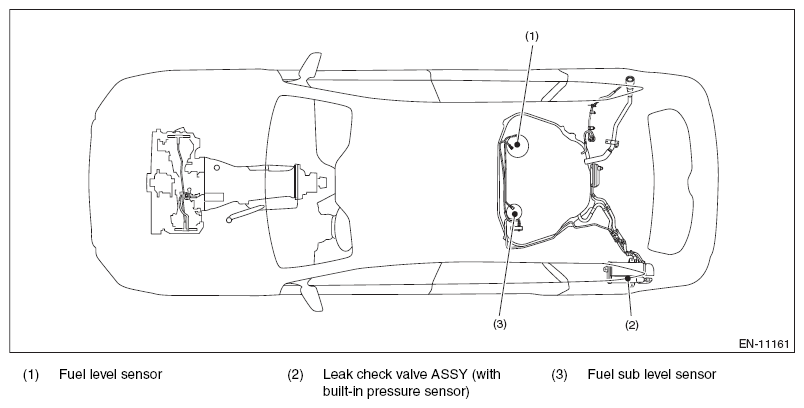

Fig 4: Engine Sensor Component Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

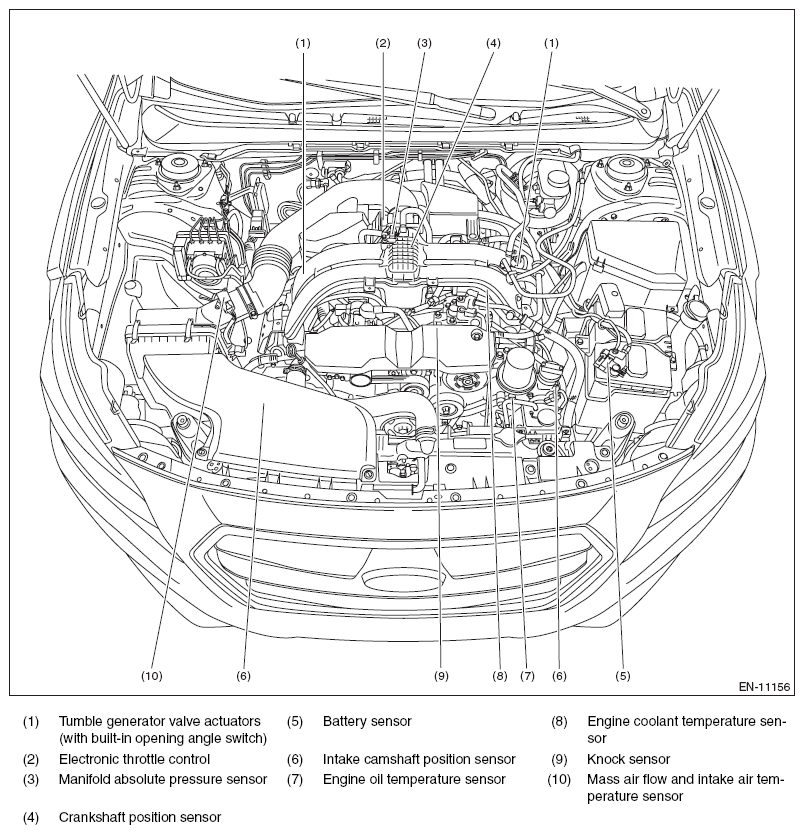

Fig 5: Engine Sensor Component Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
