Waveform 1

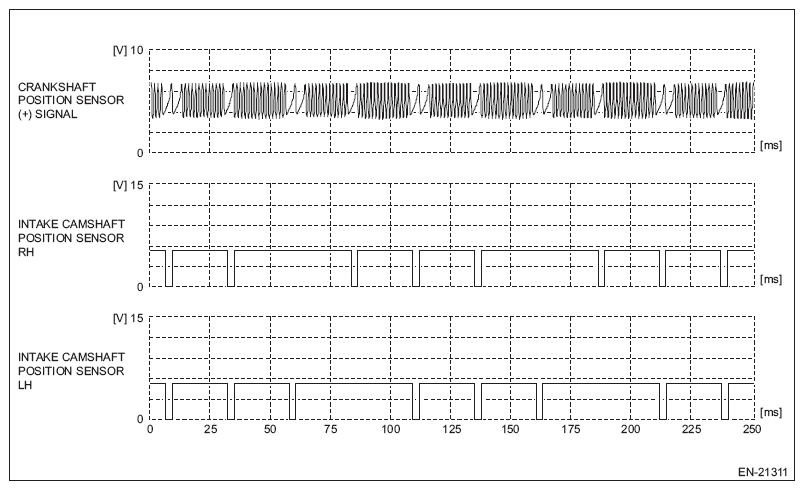

Fig 1: Waveform 1

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63 (-):
	Intake camshaft position sensor RH (E158) No. 54 (+) - Engine ground 3 (E158) No. 63 (-):
	Intake camshaft position sensor LH (E158) No. 41 (+) - Engine ground 3 (E158) No. 63 (-):
Measuring condition	While engine idling
