Waveform 10

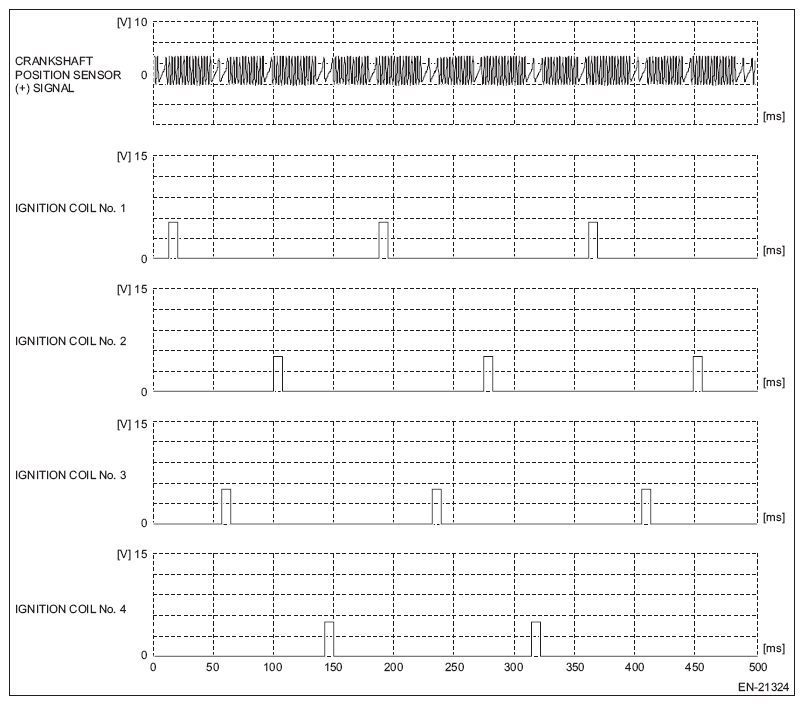

Fig 1: Waveform 10
G11583267Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63 (-):
Ignition coil #1 (E158) No. 37 (+) - Engine ground 3 (E158) No. 63 (-):
Ignition coil #2 (E158) No. 35 (+) - Engine ground 3 (E158) No. 63 (-):
Ignition coil #3 (E158) No. 38 (+) - Engine ground 3 (E158) No. 63 (-):
Ignition coil #4 (E158) No. 36 (+) - Engine ground 3 (E158) No. 63 (-):
Measuring condition While engine idling
