Waveform 11

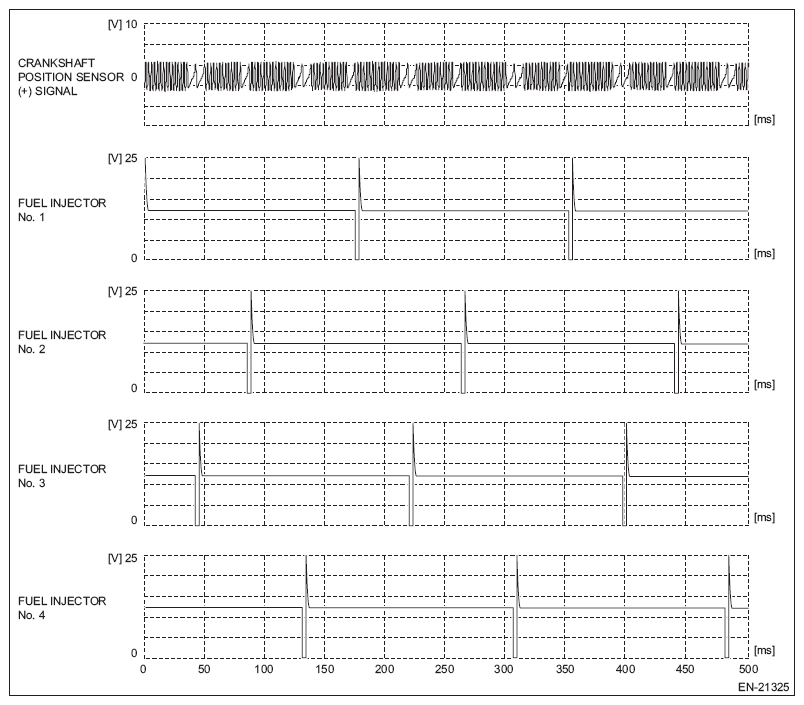

Fig 1: Waveform 11
G11583268Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63 (-):
Fuel injector #1 (E158) No. 23 (+) - Engine ground 3 (E158) No. 63 (-):
Fuel injector #2 (E158) No. 8 (+) - Engine ground 3 (E158) No. 63 (-):
Fuel injector #3 (E158) No. 9 (+) - Engine ground 3 (E158) No. 63 (-):
Fuel injector #4 (E158) No. 22 (+) - Engine ground 3 (E158) No. 63 (-):
Measuring condition While engine idling
