Waveform 6

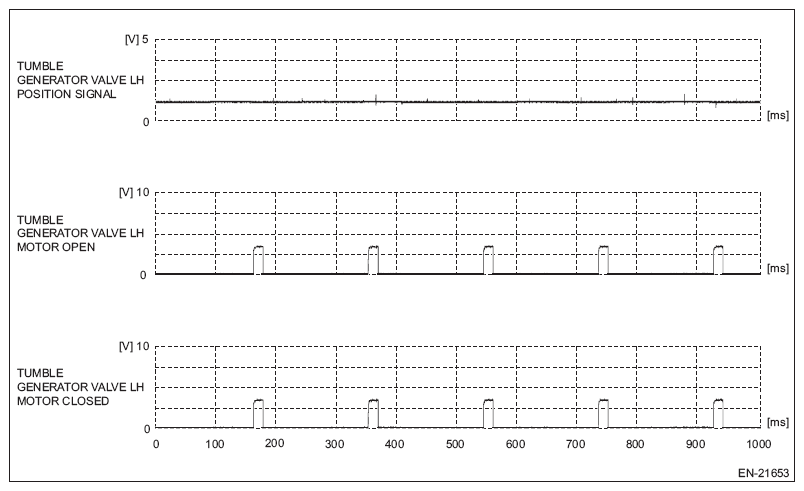

Fig 1: Waveform 6

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Tumble generator valve LH position signal (E158) No. 59 (+) - Engine ground 3 (E158) No. 63 (-):
	Tumble generator valve LH motor open (E158) No. 26 (+) - Engine ground 3 (E158) No. 63 (-):
	Tumble generator valve LH motor closed (E158) No. 39 (+) - Engine ground 3 (E158) No. 63 (-):
Measuring condition	While engine idling
