Waveform 7

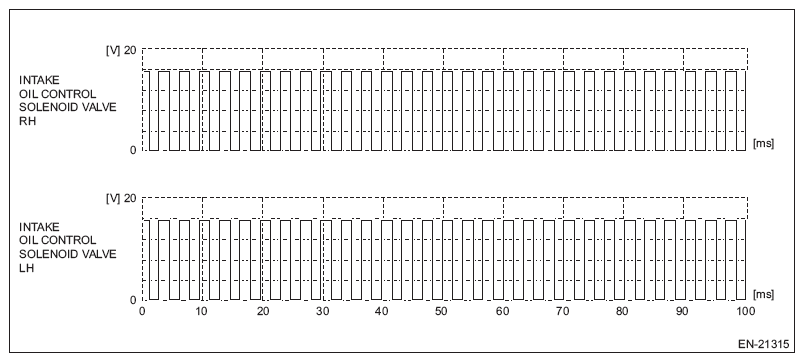

Fig 1: Waveform 7
G11583264Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Intake oil control solenoid valve RH (E158) No. 20 (+) - Engine ground 3 (E158) No. 63 (-):
Intake oil control solenoid valve LH (E158) No. 6 (+) - Engine ground 3 (E158) No. 63 (-):
Measuring condition While engine idling
