Disposal Of Pretensioner: Procedure

WARNING: Make sure to follow the instructions below. Otherwise, personal injuries may occur.

Before discarding a pretensioner, always perform an activation process to prevent any false activation.
Wear protective gloves, safety goggles and earplugs during this operation. Wash your hands afterwards.
Do not touch the pretensioner just after activation because it is very hot. Before handling it for disposal, wait for 40 minutes.

CAUTION:

Perform a pretensioner operation process in a safe, level place. Do not perform the process outdoors when there is a strong rain or wind.
Do not drop or damage the pretensioner.
A large explosive noise will occur when the pretensioner is deployed. Warn persons in the area, and do not allow anyone to approach a radius of 5 m (16 ft) from the discard location.
After activating the pretensioner, smoke may arise. Therefore, always perform an operation process in a well-ventilated place without any smoke sensor.
Do not expose the activated pretensioner to water.
Wrap the activated pretensioner in a sealed vinyl bag when discarding.
If it is impossible to perform a pretensioner activation process due to some situational reasons, consult SUBARU dealership or one of the authorized workshops.

Fold the backrest all the way forward, and move the front seat all the way forward.
Turn the ignition switch to OFF.
Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.> <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the cover side sill - front INN, cover side sill - rear INN, and trim panel - center pillar LWR. (On the side where seat belt assembly is removed) <Ref. to REMOVAL , Lower Inner Trim.>
Disconnect connector (a) of the pretensioner.

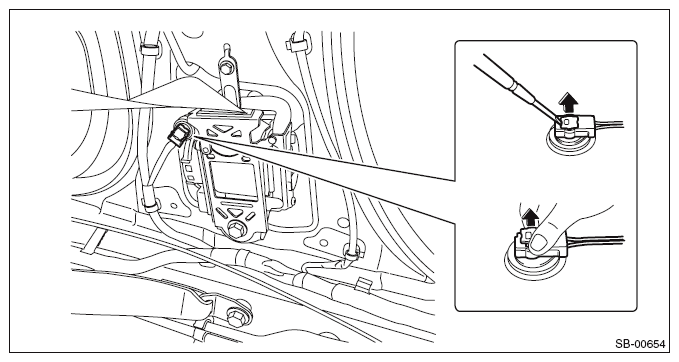

Fig 1: Detaching Connector Of Pretensioner
Courtesy of SUBARU OF AMERICA, INC.
Short the alligator clip and terminal of the airbag deployment tool together.
CAUTION: Short the airbag deployment tool terminals until just before the pretensioner operation process.

Preparation tool:

ST: AIRBAG DEPLOYMENT TOOL (98299PA030)
Connect the airbag deployment tool (A) and test harness adapter D (B).
Preparation tool:

ST: TEST HARNESS ADAPTER D (98299SA010)

Fig 2: Connecting Airbag Deployment Tool And Test Harness Adapter D
Courtesy of SUBARU OF AMERICA, INC.
Connect the test harness adapter D connector to the pretensioner.
Make sure there is no one inside the vehicle.
Extend the wiring of airbag deployment tool to the limit, and close all the windows and rear gate completely.

Fig 3: Extending Wiring Of Airbag Deployment Tool
Courtesy of SUBARU OF AMERICA, INC.
Move the battery 5 m (16 ft) or more from the vehicle, and affix nearby.
Connect the airbag deployment tool alligator clip to the battery negative (-) terminal.
Connect the other cable of airbag deployment tool to the battery positive (+) terminal, and activate the pretensioner.
CAUTION:
- After activation, the pretensioner will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
- Do not expose the activated pretensioner to water.

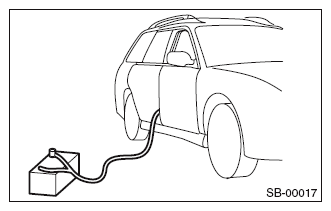

Fig 4: Connecting Airbag Deployment Tool To Battery Terminals
Courtesy of SUBARU OF AMERICA, INC.
Remove the seat belt outer - front. <Ref. to REMOVAL , Front Seat Belt.>
Cut the seat belt at a position as close as possible to the seat belt retractor.

Fig 5: Cutting Seat Belt As Close As Possible To Seat Belt Retractor
Courtesy of SUBARU OF AMERICA, INC.
Place the activated pretensioner in a sealed vinyl bag, then discard.

Fig 6: Placing Activated Pretensioner Inside Sealed Vinyl Bag
Courtesy of SUBARU OF AMERICA, INC.
