Model Without Push Button Ignition Switch

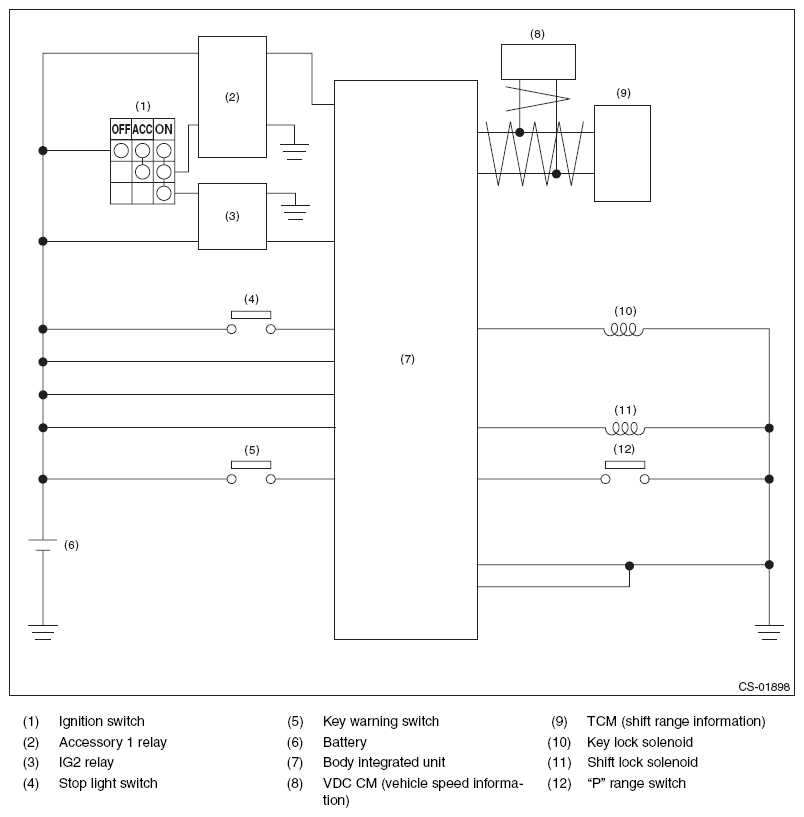

Fig 1: AT Shift Control System Wiring Diagram (Without Push Button Ignition Switch)
G11564538Courtesy of SUBARU OF AMERICA, INC.
